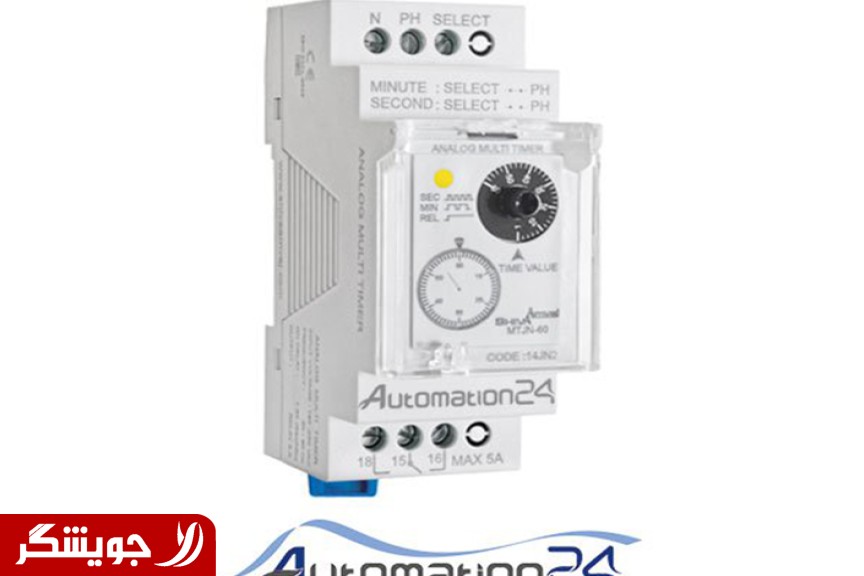

** [Shiva analog multi-timer N series code 14JN2](https://www.automation24.ir/product-3845/%D9%85%D9%88%D9%84%D8%AA%DB%8C-% 25D8%AA%D8%A7%DB%8C%D9%85%D8%B1-%D8%A2%D9%86%D8%A7%D9%84%D9%88%DA%AF-%D8%B4% 25DB%8C%D9%88%D8%A7-%D8%A7%D9%85%D9%88%D8%A7%D8%AC-%D8%B3%D8%B1%DB%8C-n-%DA %A9%D8%AF-14jn2)
Shiva Amwaj analog multi-timer is designed and manufactured in a small volume with precision and stability in repetition and the ability to seal the panel (to avoid access and changes by different people). The efficiency of this device is in the form of a connection delay timer. Commercial, industrial and residential centers are among the places where this timer can be used.
## Features of analog multi-timer Shiva Amwaj N series code 14JN2
Accuracy and consistency in repetition
Indicator with 4 different states
Off: Power off
Slow flashing: in minute timer mode
Fast flashing: in second timer mode
Permanently on: relay connected
Ability :
Set time
The device panel is sealed
Simple and easy installation on rails and other surfaces
Has elevator and standard terminals
The set time does not change due to contactor strikes
### Specifications of Shiva Amwaj N series analog multitimer code 14JN2:
Supply voltage: between 180 and 250 volts AC (from 50 to 60 Hz)
Connection time delay: 1 to 60 minutes or seconds based on settings
Efficiency in:
Temperature: between -20 and 65 degrees Celsius
Humidity: 70%
Output: 5 amp relay
Click here to view Shiva Amwaj products.**
timer:
A timer is a control part that receives an input signal and provides an output signal after a delay (which is predetermined). Timers are used in various processes in machines and production lines.
A timer is a special type of clock that is used to measure different periods of time. In terms of functionality, timers can be divided into two categories. The first category of timers are those whose time units count starts from zero and goes to a larger number, which is called a stopwatch. The second category is those that count towards zero from a specific point in time.
The function of the timer is such that after connecting the supply voltage, the device can connect and disconnect the output with certain time delays or even immediately. Nowadays, due to the importance of saving and optimizing energy consumption, the use of timers has become doubly important.
If we want to define this device from an industrial point of view, timers or time relays are one of the commanding devices of automatic control circuits, which, like control relays, are responsible for controlling the circuit for a certain period of time, with the difference that control relays control quantities They monitor electrically, but time relays or timers are in charge of timing and creating lead and lag. Another difference between time relays or control relays is that control relays have continuous graphs, but timers have discrete graphs.
