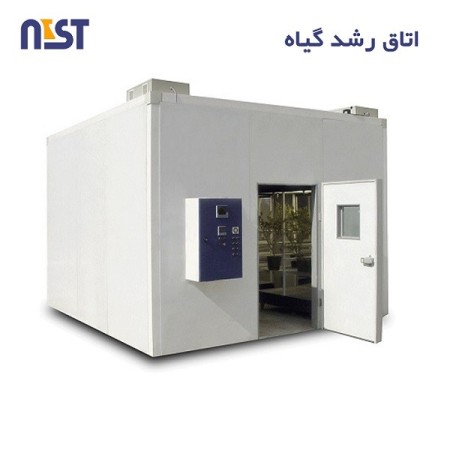

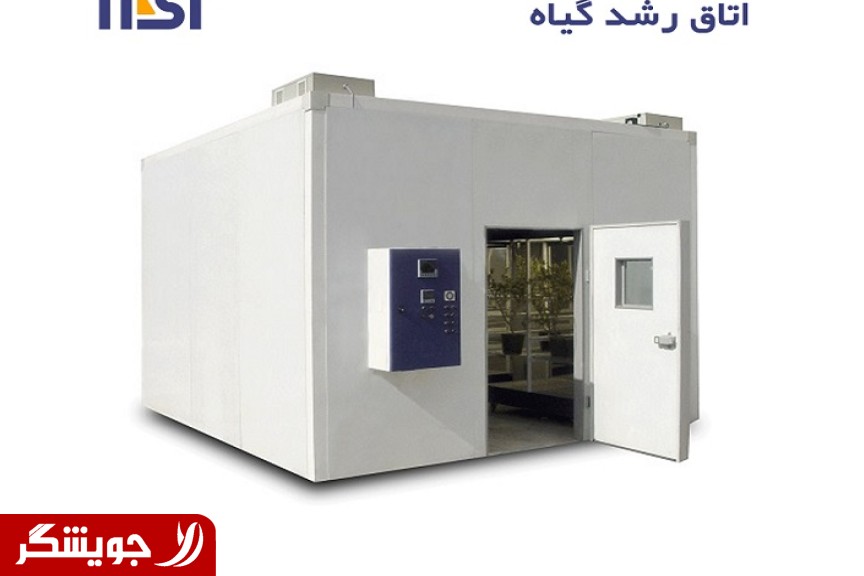

Construction of plant growth rooms

Construction of plant growth rooms

The plant growth chamber is a controlled chamber for the growth and habituation of tissue culture plants. Plants that need parameters such as temperature, light, humidity and different gases to grow. This room simulates the weather conditions of different cities of the country and allows researchers to test any plant in different regions of the country without the need for the geographical conditions of that place. In fact, all the necessary maintenance conditions for each plant are specified according to its type, such as the amount of sufficient humidity, the light required during the day and at night, the amount of water required, and the appropriate temperature. Also, the plant growth room helps in the pathology of plants so that researchers can deal with diseases and geneticists can produce healthier food products. Be aware of the year and control all unexpected natural events such as storms, floods, extreme cold that causes plant freezing and even extreme heat and prevent any irreparable damage. Therefore, in order to achieve this goal and provide all suitable conditions for maintenance and prevent damage, it is necessary to build a suitable environment with the ability to control environmental conditions. We are in different seasons of the year when proper and scientific planning can meet this need by designing and building growth rooms and research greenhouses. Technical specifications of the plant growth box: NSTTC model. \nExternal dimensions (width * length * height) 3.12 * 3.12 * 3.00 m \nTotal volume 30,000 liters
Useful volume 20,000 liters
Sandwich panel body material with a thickness of 6 cm with polyurethane foam
Optical luxury 10,000 LX
Light intensity 0 to 100
Special LED lamp exposure type Growth chamber
Temperature range 4 to 45°C
Temperature accuracy 0.5°C
Temperature sensor 100 PT
Humidity range 40% to 95%
Humidity accuracy 0.03
Humidity sensor Transistor
Air flow speed 0.5 to 0.8 m/s
Touch screen display
PLC controller
Programmability Yeezy 10 program, 10 lines
It has the ability to connect to the network
Data storage for up to 2 years
Sound and mechanical alarm warning
Danshan-based DX cooling
It has an SMS system
The useful volume of the cultivation area is 12 square meter
Shelving 4 shelves, each shelf, 3 floors
The number of baskets per floor, each shelf has 4 baskets
The size of each basket is 30 x 60 cm
Manufacturing in special dimensions, the ability to make according to the customer's desired dimensions
