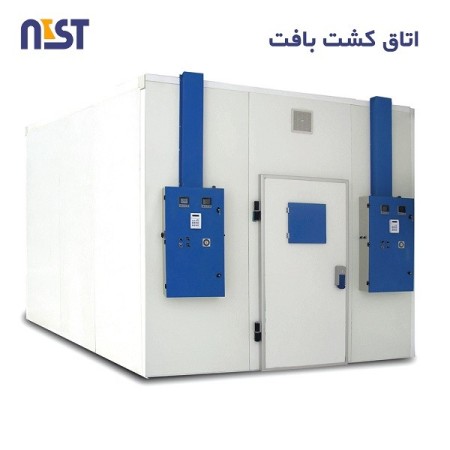

Construction of tissue culture rooms

Construction of tissue culture rooms

The tissue culture room is a device that provides the necessary conditions for the growth and reproduction of plant tissue by creating artificial environmental conditions. Tissue culture rooms provide the ability to adjust the temperature, light and humidity required for the growth and reproduction of plant tissue. The tissues isolated from the plant, after being placed in the culture medium (agar), enter the light shelves in this device and continue their growth and reproduction stages.

The tissues that are in Cultivation is located inside the device, after the necessary period of time, it becomes a complete plant; They become like a mother plant. After that, the tissue culture plant can be planted in the soil. It is also possible to use different gases in this plant growth chamber, including carbon dioxide (CO2), which is usually between 5000 and 1000 PPM, and for plant growth It is very desirable to control.

Use of tissue culture rooms
In modern agriculture, the use of scientific methods to grow the best plants and the most productive plants is very useful. The plant tissue culture method is the most widely used of these methods. Through the tissue culture rooms, after separating the tissues from different samples of a plant species, they can be placed in the culture environment and their performance can be investigated in different environmental conditions.

It is also possible to check How different plants perform in different weather conditions is also possible in this way.

Apart from their use as a tool for research, in recent years, plant tissue culture chambers have been used in the field of plant propagation. , disease eradication, plant recovery and production of secondary metabolites have gained industrial importance.

Small pieces of tissue (called micro-samples) can be used to produce hundreds and thousands of plants in a continuous process. A small sample in controlled conditions, regardless of the season and weather for a year, can be multiplied in several plant periods and in controlled conditions in several thousand plants.

Models:
Tissue culture room 30,000 liters

Technical specifications of the device:
External dimensions (widthlengthheight) 3.12 * 3.12 * 3.00 meters
Internal dimensions (widthlengthheight) 3.00 * 3.00 * 2.20 m
Dimensions of the door (height*width) 2.00 * 1.00 m\r\ nTotal volume 30.000 liters
Useful volume 20.000 liters
Sandwich panel body material with a thickness of 6 cm with polyurethane foam
Light luxury 10.000 LX
Light intensity 0 to 100
Lighting type of LED lamp for the room Growth
Temperature range 4 to 45°C
Temperature accuracy 0.5°C
Temperature sensor 100 PT
Humidity range 40% to 95%
Humidity accuracy 0.03
Transistor humidity sensor
air flow speed 0.5 to 0.8 m/s
touch screen display
PLC controller
programmability of 10 10-line programs
network connection capability
data storage up to 2 years\r \nVoice and mechanical alarm warning
Knowledge-based DX cooler
It has SMS system
Useful volume of cultivation area 12 square meters
Shelving 4 shelves per shelf 3 floors
Number of baskets per floor each The shelf has 4 baskets
The size of each basket is 30 x 60 cm.
