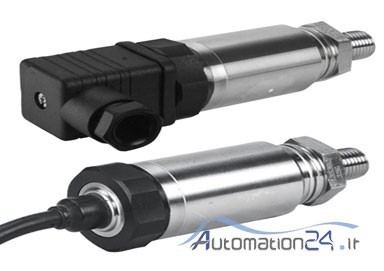

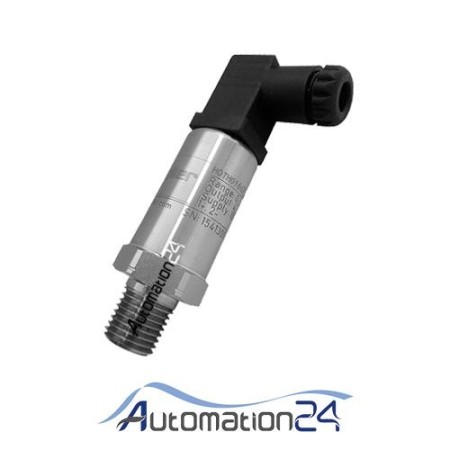

Hagler pressure sensor 160 bar current HOTH0160FGCK

Hagler pressure sensor 160 bar current HOTH0160FGCK

[Hagler pressure sensor 160 current bar HOTH0160FGCK](https://www.automation24.ir/product-2866/%D8%B3%D9%86%D8%B3%D9%88%D8%B1-%D9% 2581%D8%B4%D8%A7%D8%B1-%D9%87%D8%A7%DA%AF%D9%84%D8%B1-160-%D8%A8%D8%A7%D8%B1- %D8%AC%D8%B1%DB%8C%D8%A7%D9%86%DB%8C-hoth0160fgck)


The pressure sensor is one of the most widely used tools in industrial automation.

Pressure is the force on the surface which is defined in the SI device based on pascal (Pa).


The pressure sensor works as a transducer and produces a signal corresponding to the effect of pressure, and hence it is also known as a pressure transmitter.


Basically, pressure sensors are made in three different types, which are used depending on the type of application.

### These three types are:

1. Analog pressure sensor
2. Digital pressure sensor
3. Hand pressure sensor (manometer)

Each of the categories mentioned above is used in its own space, which we will discuss further.

1. Analog pressure sensor: This type of pressure sensor is widely used in the industry. These sensors can sense millibar sensitivity and show it in their output. Analog pressure sensors have an output of 4-20 mA or 0-10 V

2. Digital pressure sensor: these sensors act as zero and one and only inform the user of the absence or presence of pressure in the system. If there is pressure in the system, this sensor can open an open contact or Specify the package in its output.

3. Hand pressure sensor: This pressure sensor determines the pressure in the system as the hand rotates.









**Click here to view Hagler products.**

## The difference between digital, analog and hand pressure sensors:

1- Each of the above sensors are used in different parts of the system.

2- The needle pressure sensor is extremely sensitive to the instantaneous pressure increase.

3- The analog pressure sensor is much more accurate than other sensors.

4- The price of analog pressure sensors is much higher than other sensors.

5- Maintenance of analog pressure sensor is less expensive than other sensors.


## How to wire analog pressure sensors:

The analog pressure sensors are connected to the system by two wires and there is also a ground connection. Pin 1 of the sensor is connected to the positive and pin 2 is connected to the desired controller such as PLC. After doing this, the sensor sends the output to the controller.

## Application of pressure sensor:

The use of pressure sensors in the industry is used to measure the pressure in the system. According to the user's use of this sensor, it can not only detect and display the system pressure. Therefore, by using this sensor, it is possible to obtain information such as the height of the liquids inside the tanks and the weight in the tanks.
