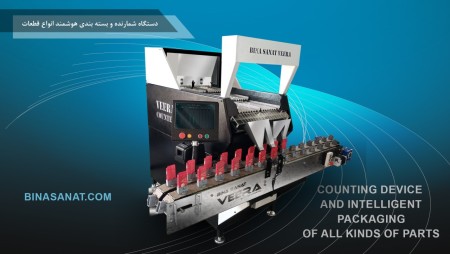

The basis of this device's work is counting by industrial cameras and software based on artificial intelligence. The mechanical structure of this device is designed and implemented according to the type of parts intended for counting. For the feeder part of this machine, a conveyor feeder structure that has a hopper is used. After being poured into the hopper and feeder, the parts are transferred to the next conveyor paths, these conveyor paths include vibrators to separate and advance the parts to the shooting position.
At the end of the device, the main processing and imaging system is installed, which is responsible for counting parts using artificial intelligence algorithms.
In this section, parts are dropped one after the other in large numbers in front of the camera, lens and industrial light, and the images taken by the camera of the falling parts are sent to the main processor system.
In the processor system, these images are analyzed and processed at high speed, and accurate counting of parts is done based on machine vision techniques.
In this method, the counting accuracy can generally be implemented up to 100%. This device is made and implemented according to the desired applications in different dimensions and details.
The features of this device include the following:
100% counting accuracy
High counting speed up to 100 thousand pieces per hour
(corresponding to the countable piece size)
packaging
The longevity of the equipment
The possibility of teaching different parts to the system
Failure to count pleats and waste in the counting process
Easy user interface for the operator to use
This device has the ability to count the following parts:
Electronic components, mobile phone screws, capacitor, electrical resistance, electrical connector
Plastic injection mold parts, pipe fittings, plastic parts, garment buttons, plastic components
All kinds of screws, bushings and all kinds of metal parts with different sizes
Washer, nail, pin, stud, fuse, wire, riveter
All kinds of legumes, plant seeds
All kinds of medicinal capsules and tablets
All kinds of chocolates, candies and all other foods that can be counted
All kinds of automotive industry parts (front parts, etc.)
And all similar parts from 1 mm size up
