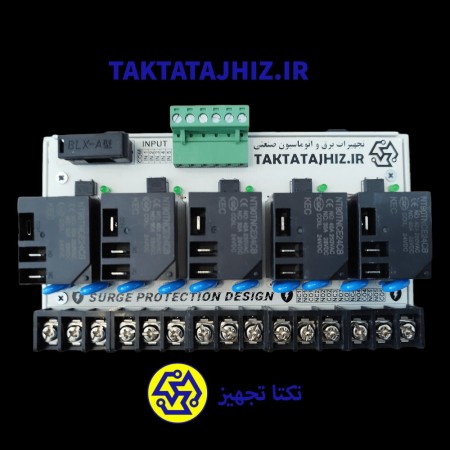

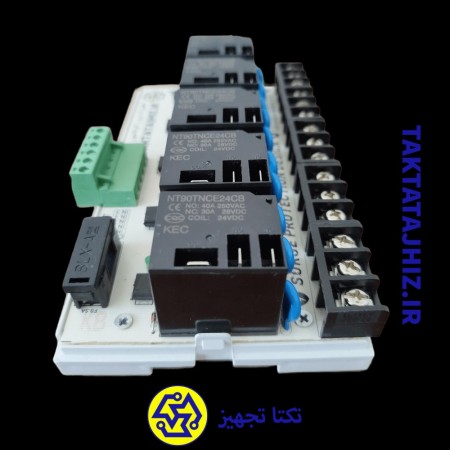

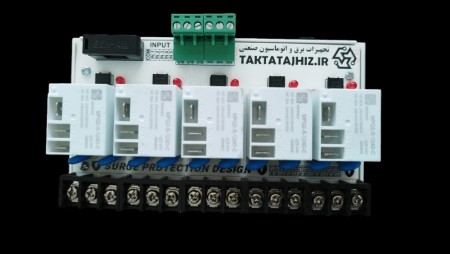

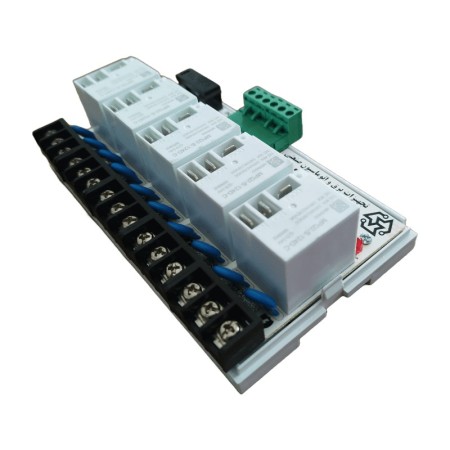

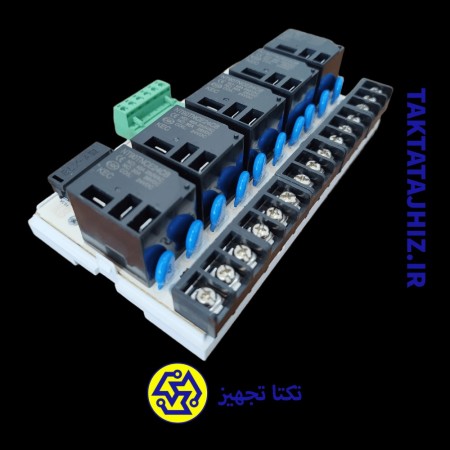

5 -channel power relay card 30 amp 12 and 24V

Contact with the company Start order
  • 1 Year

5 -channel power relay card 30 amp 12 and 24V


Buy Power Relay Power Board 30 Amps
Number of output channels: 2 channels
Stimulation voltage: 12V and 24V AC and DC
Relay Flows: 30 amps
Number of contacts: one
Rail installation
One -year warranty
Customized

-Thewing LED indicator of the disconnection or connection of each channel
-The diodes of regenerative relay current and protection of sensitive electronic equipment such as PLCs, sensors and…
-Multiple increase in the lifespan of relay contacts due to the use of sparkling and lesser relay contacts
-This have detailed terminals
-No -Panel Railway Panel

** Customizable by your name, brand and contact information

Description:
One of the most important and most widely used equipment is the connection of electric currents in industrial power and automation systems, relays and contactors.
In the field of industrial electricity and automation, contactors are commonly used to disconnect and connect high power power or three -phase power loads, while relays are usually used in low power control steering systems and to disconnect single -phase currents or lower DC voltages such as 24, 48, 60, etc., as well as insulation and control.
In addition to disconnecting and connecting, relays are also used as equipment for insulation between two different potential sources as well as as an increase in voltage power and output current of the steering circuit. Using a very poor control relay, you can disconnect and connect equipment with higher nominal current.
Relay cards or relay board or relay, due to much lower price, easier installation on rails, less wiring volume and cost and time reduction, quick and easy replacement of the entire board, less space in the panel, and so on have replaced the rail relay relay. In this product, a cool head of the relay stimulates from the board (jumper) and no longer requires extra wiring and use of jumper.
This product has a separate diode bridge for each relay channel. This feature allows the relay to be used at the steering wheel, both in the form of a subscriber and as a subscriber (NPN and PNP). Each relay is also installed on a separate socket, which makes it easy to replace each relay if possible. Another important feature of this relay card is the use of separated terminals in the inputs and outputs of the board.
To select the right board for your desired application, you must have different relay cards such as the relay brand, the number of relay channels, the relay stimulating voltage, the contact current, the number of contacts each relay, the full combination of the Com and NO and NC contacts connected to the sockets, the fuse of the relay, Notice.
The flow required to stimulate the reel relay relay is less than 40 mA. That is why to convert the typical transactions and
