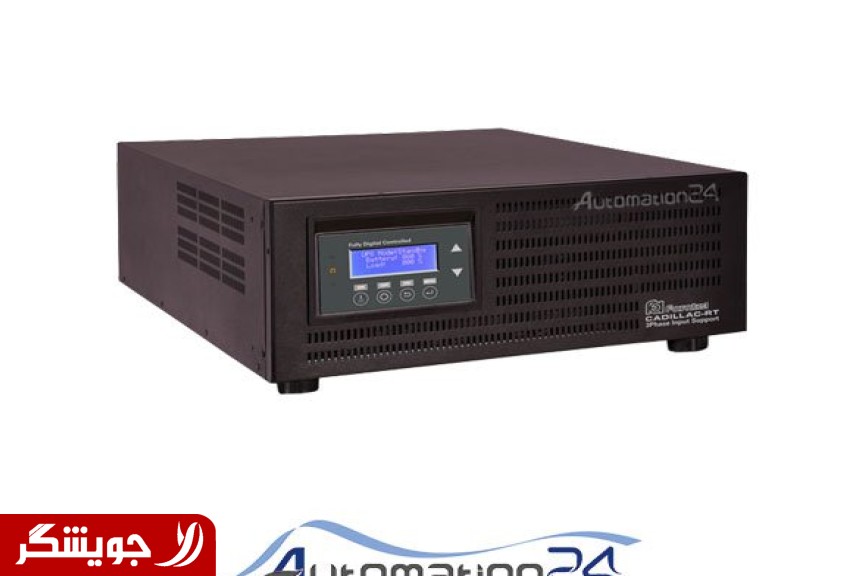

Cadillac three-phase UPS model CAD10KX3-RT-4U Faratel

The design and production of all types of electrical panel pantographs will be accepted as soon as possible according to your order with first-class materials and the lowest price. Phone: 09109250881

**[Rotary Encoder Atonix E50S8-1024-6-L-5](https://www.automation24.ir/product-559/%25D8%25B1%25D9%2588%25D8%25AA%25D8%25A7%25D8%25B1%25DB%258C- %25D8%25A7%25DB%258 C%25D9%2586%25DA%25A9%25D9%2588%25D8%25AF%25D8%25B1-%25D8%25A2%25D8%2 5AA%25D9%2588%25D9%2586%25DB%258C%25DA%25A9%25D8%25B3-e50s810246l5)**\r\n\r\n## Main features:\r\n● 1024 output pulses\r\n● Outer shaft with a diameter of 8 mm\r\n● Easy installation in small space\r\n● Power supply voltage: ±5% D 5 VDC\r\n● Suitable for measuring angle, position, rotation, speed, acceleration and distance\r\n● Diversity in output type\r\n\r\nThe shaft encoder converts the angular movement of a shaft or axis into countable electrical pulses. In terms of performance, encoders are divided into two types: incremental and absolute.\r\n\r\n### Incremental encoder\r\n\r\nIn this type of encoders, a pair of transmitter and receiver LEDs and a calibrated disc (black and white or perforated) are used, and the calibrated disc is placed between the transmitter and receiver sensor. During the rotation of the graduated disc, the signal between the transmitter and the receiver is cut off and connected successively, and we will have a set of pulses at the output. By counting the number of pulses, the amount of rotation and displacement can be calculated.\r\n\r\nThe more the number of pulses, the more accurate the movement calculation will be.\r\n\r\n\r\n\r\n**[Click here to view Atonix products.](https://www.automation24.ir/product/list/search/?manufacturer_id=3&sort=order-desc)**\r\n\r\nBy counting the number of encoder pulses, the amount of movement or rotation of the shaft can be measured. But if we have a row of output pulses, it is not possible to detect the direction of rotation. Therefore, the encoders must have a second set of pulses, which is separate from the primary pulse.\r\n\r\nAlso, a single pulse that represents the rotation time of a complete cycle of the encoder shaft is also produced by the encoders. The first set of pulses is known as A, the second set is known as B pulse, and the third unit pulse is known as Z pulse. \r\n\r\nIf there is a set of pulse A before pulse B, the encoder rotates clockwise (clockwise), and if pulse B is earlier than pulse A, the shaft rotates counterclockwise (clockwise).\r\n\r\nEncoders are made to produce different number of signals according to usage needs. The most widely used rotary encoder is Atonix in 3 signal and 6 signal types. In the three-signal model, the supply voltage is 24V DC and the encoder has 3 wires. In model 6, the power supply voltage signal of the encoder is 5V DC and the encoder has three pulses *A, *B, and *C in addition to the pulses A, B, and Z, which are exactly the opposite of the primary pulses. That is, when the pulse A is at the logical 1 level, the *A signal is at the dotted zero level.\r\n\r\n\r\n### Absolute encoder\r\nA major problem in incremental encoders is that the count of pulses must be stored in a counter, and if there is a malfunction in the counter for any reason, the encoder loses its position. In the incremental encoder, the zero point of movement will not be clear. To solve this problem, absolute encoders were created that will always know the position they are in and the distance from the starting point (zero point). The disc used in these encoders consists of a number of equivalent grooves, which rotate certain codes.

**[Atonix optical sensor BEN5M-MFR] (https://www.automation24.ir/product-244/%25D8%25B3%25D9%2586%25D8%25B3%25D9%2588%25D8%25B1-%25D9%2586 **\r\n\r\n\r\nBEN optical sensor series is made in a small and practical size. It has an internal amplifier and indicates the output status of the sensor. This indicator allows users to recognize the operational status of the sensor from a distance. BEN series has a signal amplifier that is made in a small size. This type of optical sensor has an LED indicator, which allows users to remotely recognize the status of the sensor\'s output. \r\n\r\n## Main features of Atonix BEN5M-MFR optical sensor:\r\n\r\n ● Detection distance of 5 meters\r\n● Made in small dimensions and with multi-volt power supply\r\n● Easy installation with LED status display in the product\r\n● Able to set clairvoyant and clairvoyant modes\r\n● Has LED indicating status and output\r\n● Photo Diode IC resistant to ambient light and electrical noise\r\n\r\nOptical sensors are another type of proximity sensors that operate based on sending and receiving infrared waves. These optical sensors detect any object regardless of its type.\r\n\r\nOptical sensors are divided into the following three categories:\r\n\r\nI: One-sided Diffuse\r\n\r\nII: Retroreflective\r\n\r\nIII: Two-way through-beam\r\n\r\n### One way:\r\n\r\nIn this type of sensors, the transmitter and receiver parts are located next to each other and inside a case. The light sent by the transmitter is spread directly in the environment, and if it hits an obstacle, it is reflected and changed by the receiver. Using the coefficient table below, the performance interval will be determined. \r\n\r\n### Reflective:\r\n\r\nIn this type of sensors, the transmitter and receiver are installed next to each other and inside a case, the light sent by the transmitter is spread in the environment and is reflected directly to the receiver by hitting a reflector (mirror). If there is an obstacle in this path, the light does not reach the receiver and the sensor detects the obstacle.\r\n\r\n### Two-way:\r\n\r\nIn this type of sensors, the transmitter and receiver are located separately from each other and must be installed facing each other. The light sent by the transmitter is emitted in the environment and received by the receiver. If there is an obstacle in this path, the light does not reach the receiver and the sensor detects the presence of an obstacle in front of it.\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n**[Click here to view Atonix products.](https://www.automation24.ir/product/list/search?keywords=&in_description=1&category_id=0&inc_subs=1&manufacturer_id=3&pfrom=&pto=)**\r\n\r\n## Optical sensors are divided into two types, Light on and Dark on, in terms of operation.\r\n\r\n**Light on:** In the normal state where there is no obstacle in front of the sensor, the output of the sensor is inactive, and if the sensor works, the output changes from inactive to active (N.O output).\r\n\r\n**Dark on:** In the normal state where there is no obstacle in front of the sensor, the output of the sensor is active, and if the sensor works, the output changes from active to inactive. (NC output)\r\n\r\n## Optical sensors

** [Push button emergency lock single contact Pars Fanal] (https://www.automation24.ir/product-3860/%25D9%25BE%25D9%2588%25D8%25B4-%25D8%25A8%25D8%25A7%25D8 %25AA%25D9%2586-%25D8%25A7%25D9%2585%25D8%25B1%25D8%25AC%25D9%2586%25D8%25B3%25DB%258C-%25D9%2582%25D9%25 81%25D9%2584%25D8%25B4%25D9%2588-%25D8%25AA%25DA%25A9-%25DA%25A9%25D9%2586%25D8%25AA%25D8%25A7%25DA%25A9 **\r\n\r\n\r\n\r\nPush button is a typical switch mechanism to control some system activities. There are many push buttons in the market with different models and different shapes and mechanisms. Push buttons actually perform a function when pressed by the operator. Push buttons can be momentary, that is, they act as soon as we press it and it returns to its original state if we let go of it, or it can act in such a way that it acts by pressing it and in It remains in the same position and returns to its first position by being compressed again.\r\n\r\n## Push buttons in terms of color:\r\n\r\nPush buttons are also made in different colors, each of these colors represents a type of function. For example, red color is used to step the system and green color is used to start or start the car. This feature prevents the operator from making mistakes while working with these keys.\r\n\r\nAlso, a series of push buttons in red color have bigger heads than other push buttons, which are called mushroom keys in the industry and are used as emergency chassis in the system. This type of mushroom push buttons is designed in two ways, with keys and simple, for use in different places. Depending on the limitations of the system, the push buttons are made of plastic or metal, which have a simple or waterproof function available in the market.\r\n\r\n## In terms of performance status:\r\n\r\nIn order to show the status of some of the push buttons to the operator, a light is also installed on them, which the operator will notice if the light turns on. \r\nThat this key has worked.\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n[**Click here to view Pars Fanal products.**](https://www.automation24.ir/product/list/search?keywords=&in_description=1&category_id=0&inc_subs=1&manufacturer_id=64&pfrom=&pto=)\r\n\r\n## Things to consider when buying push buttons:\r\n\r\n1. Type of push button (for example, start or step)\r\n2. Type of operation (for example, momentary or permanent)\r\n3. Combination of contacts (1NO+1NC)\r\n4. The diameter of the installation location of the push button on the panel\r\n5. Voltage of the light if the push button is lit\r\n6. Ability to replace contacts\r\n7. Tolerable current of contacts\r\n8. The number of allowed disconnection and connection times

**[Types of dc motor drivers](https://www.manamotor.com/electromotor/dc-motor/dc-driver)** Available in different currents and voltages at Manamotor. If you intend to make a safe purchase based on your needs, you should pay attention to these points. The most important issue in choosing the mentioned type of drives is the passing current and voltage. So you have to match the engine specs with the launcher specs \r\nFit full face.\r\n\r\n### **Application of dc motor driver:**\r\n### \r\nRegarding DC driver applications, you can use DC driver wherever you want to have speed control and the motor you are using is DC type. Although DC drivers are not only used to control DC motors, it is possible to use DC drivers to power any type of consumer that consumes DC power, such as proportional switches and valves that are controlled by DC voltage, as well as DC brakes. has\r\n\r\n### ** [Manamotor](https://www.manamotor.com); Sales representative of top products**\r\n### \r\nElectric motor Motor gearbox Inverter Step motor and driver Servo motor Encoder Fan and ventilator Electric jack Turntable\r\n\r\n**Benefits of buying from Manamotor**\r\n*Comparison, technical advice, selection and online purchase of movement equipment\r\n*Guarantee quality and price and offer discounts in bulk purchases\r\n* Providing official invoices to companies, organizations and organizations\r\n* Immediate delivery to the entire country\r\n\r\nTo order all types of DC motor drivers, you can google Manamotor and find the product from the menu or search option.\r\n\r\n## [Manamotor dc motor driver price] (https://www.manamotor.com/electromotor/dc-motor/dc-driver)\r\n## \r\nIn this website link, there is the price of Manamotor dc motor driver. You can filter by brand, category and features to get the desired result \r\nhttps://www.manamotor.com/electromotor/dc-motor/dc-driver\r\n\r\nTo use specialized and technical advice from sales experts, call or send a message on WhatsApp and ITA.\r\n02158693000\r\n09351182424\r\n\r\n### Important factors in the selection and price of the DC motor driver \r\n### \r\n1. DC driver voltage range\r\n2. Nominal and instantaneous current\r\n3. How to control the speed of the DC motor\r\n4. Soft starter feature\r\n5. External link\r\n6. Sensorless control capability\r\n7. Type of control device\r\n8. Round left and right round engine\r\n\r\n\r\n**Manamotor\'s 12-year history**\r\nHoushmansazan Harkam Company started its activity in 2011 and entered the field of e-commerce and startups in 2014 under the brand name of Manamotor. We have set our vision to create a specialized supply authority for movement equipment. We try to solve the concerns of artisans and business owners by providing technical and specialized information online and customer support by phone and in person.

**[TS 400 LS automatic key] (https://www.automation24.ir/product-1237/%25DA%25A9%25D9%2584%25DB%258C%25D8%25AF-%25D8%25A7%25D8% 25AA%25D9%2588%25D9%2585%25D8%25A7%25D8%25AA%25DB%258C%25DA%25A9-%25D8%25A7%25D9%2584-%25D8%25A7%25D8%25B3-%25D9%2585%25D8 %25AF%25D9%2584-ts-400)**\r\n\r\n### Automatic key:\r\n\r\nIn order to protect lighting installations, industrial electricity, wires and cables and machines against overload and short circuit current, fuse, thermal switch or automatic switch is used. Maybe in some cases, the needs of the systems can be answered by a miniature key or a thermal key, but the many capabilities of automatic keys have increased the range of use of this key in the industry.\r\n\r\nAutomatic keys are classified into two categories: compact and air. Depending on the user\'s needs, both of the above categories can be used, but the main difference between these two categories is that compact automatic switches are manufactured up to 1600 amps, and if an automatic switch with a higher current is desired, it should be of air switches. be used\r\n\r\n## Important features of automatic keys:\r\n\r\n1. It is easy to adjust the current in these types of switches.\r\n2. Miniature switches are available up to 63 amps, but automatic switches (compact type) are made up to 1600 amps.\r\n3. There are more accessories that can be connected to the automatic switch.\r\n4. The operation mode of automatic keys is performed in three areas. (error area, area one, area zero) but miniature or thermal switches have two areas zero and one.\r\n5. Automatic keys have the capability of remote control.\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n**[Click here to view LS products.](https://www.automation24.ir/product/list/search?keywords=&in_description=1&category_id=0&inc_subs=1&manufacturer_id=24&pfrom=&pto=)**\r\n\r\n## Things to consider when buying automatic keys:\r\n\r\n1. The automatic key can be adjusted or it cannot be adjusted\r\n2. Working current range\r\n3. The number of disconnected and connected bridges\r\n4. Short circuit breaking power\r\n5. Its dimensions\r\n6. Peripheral equipment

Transformer stabilizer 12 kava 50 amp Fabili\r\nVoltage boost from 130 volts, input voltage reduction from 275 volts\r\nInput and output digital display and amperage consumption.\r\nOverload warning sound.\r\n18 months corporate warranty.\r\n4 months unconditional replacement of the device when any problem occurs.\r\nAgency and sales office and after-sales services. Fabili. Patrick\'s Pax Alja Faratel Pernik Single phase and three phase.

** [Kaken TF-1C relay] (https://www.automation24.ir/product-3750/%25D8%25B1%25D9%2584%25D9%2587-%25DA%25A9%25D8%25A7%25DA%25A9% 25D9%2586-tf1c)**\r\n\r\n### What is a relay:\r\n\r\nIn a very simple way, it can be said that a relay is an electromechanical switch whose contacts change state when the coil is stimulated. Relays consist of two parts that are completely independent from each other. The first part, which is actually the relay coil, which can exist independently of the relay base or in a compact form, and the second part of the relay, which is the same as the relay base.\r\n\r\nToday, relays are widely used in the industry, relays are mostly used in control circuits, almost all devices used in the industry, either openly or covertly, use relays. is One of the advantages of the relay is that by using it, you can get a high power output with a very low power. In other words, it can be said that the relay is also considered as an amplifier because the input with low current and the output with high current can be received from it. Depending on the type of construction, relays have 2 bases for feeding the coil and one or more COM blades (common), one or more closed blades (NC) and one or more open blades (NO).\r\n\r\n One of the important applications of relays can be in using the PLC output path. Because the PLC outputs that exist as relays inside the CPU, it is possible that if they are directly connected to the consumer, they will be defective due to current draw. As a result, the output of the PLC is connected to the coil of an external relay and the consumer is stimulated by the blades of the external relay. The good thing about this is that if something happens to the consumer, the external relay is damaged, in which case the relay can be easily replaced, but if the PLC\'s internal relay is faulty, it cannot be repaired easily.\r\n\r\n## Parts of the relay:\r\n\r\nspring\r\nCoil to magnetize the blades\r\nContact blades\r\niron core\r\nNote) Relays used to be mostly made electromechanically, but today, with the advancement of technology, electronic relays, including SSR relays, etc., have also been made.\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n\r\n**[Click here to view Kaken products.](https://www.automation24.ir/product/list/search/?manufacturer_id=6&pageItems=120)**\r\n\r\n## Things to know when buying a relay:\r\n\r\nRelay coil excitation voltage and current\r\nTolerable voltage of contacts\r\nThe number of blades\r\nAppearance of the relay
