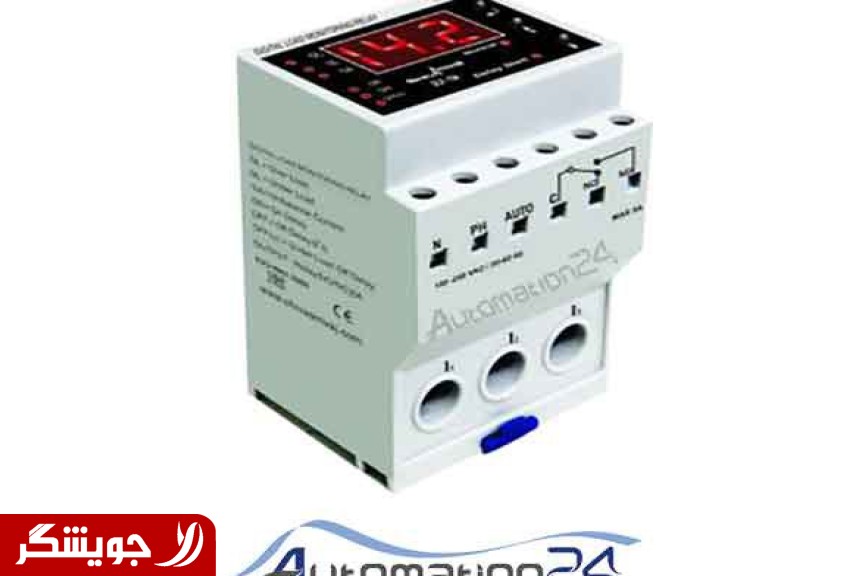

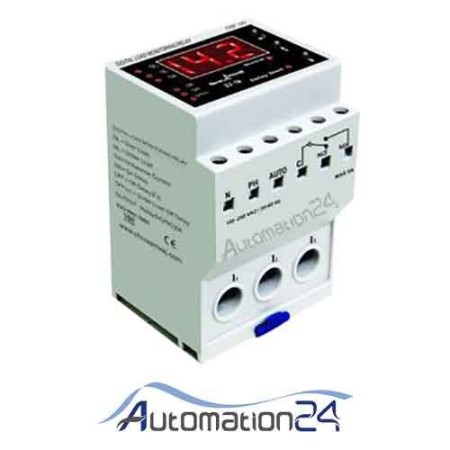

Digital load control 60 amps Shiva Amwaj code 13F6

Digital load control 60 amps Shiva Amwaj code 13F6

[Digital load control 60 amps Shiva Amwaj code 13F6](https://www.automation24.ir/product-919/%DA%A9%D9%86%D8%AA%D8%B1%D9%84 -%D8%A8%D8%A7%D8%B1-%D8%AF%DB%8C%D8%AC%DB%8C%D8%AA%D8%A7%D9%84-60-%D8%A2% 25D9%85%D9%BE%D8%B1-%D8%B4%DB%8C%D9%88%D8%A7-%D8%A7%D9%85%D9%88%D8%A7%D8%AC- %DA%A9%D8%AF-13f6)

Digital load control device using the latest technology and using a microprocessor system for accurate control of disorders caused by current asymmetry and increasing with decreasing current for use in all industrial centers without the need for CT and in two models 0 to 15 amps and Designed and manufactured from 1 to 60 amps.

## Features of Shiva Amwaj digital load control

1. Protection of three-phase devices using a micropressure system
2. Current control based on I2t curve
3. Current measurement without the need for CT and with the direct passage of a maximum 25mm2 cable
4. Display flow, set values ​​and error messages
5. Protection against increase, decrease and asymmetry of currents
6. 8 indicators for announcement
7. OL: increase in current
8. UL: current reduction (adjustable up to 1 amp less than OL)
9. A%: Current asymmetry (7-100%)
10. ON: connection delay or reset delay (from 0 to 240 seconds)
11. OFF: cut-off delay for OL and A% error (from 0 to 10 seconds)
12. OFF (u): delay in disconnecting UL fault (from 5 to 10 seconds)
13. Normal: relay status
14. Delay Start: initial start time (0 to 120 seconds)



**Click here to view Shiva Amwaj products.**


Technical specifications of Shiva Amwaj digital load control
Supply voltage: 180 to 250 volts AC (from 50 to 60 Hz)
Efficiency in:
1. Temperature: between -20 and 65 degrees Celsius
2. Humidity: 70%
Output: 5 amp relay

Load control:
In fact, in the past and even now, in order to be able to protect the electric motors in the system against dangerous factors such as overload, we used bare metal or thermal switches. If, for any reason, the desired motor requires more than the allowed current from the circuit, the motor power supply path is cut off by using bimetal or a thermal switch to identify the circuit fault. Today, three-phase overcurrent relays (load control) are a suitable replacement for non-metal relays and thermal switches.

The load control relay, having three internal current transformers, measures the current of each of the current channels like an ammeter and compares it with the set current, and if the current of each line exceeds the set value, it removes the consumer from the circuit. . In order to cover the starting time in motors with a lot of overload, an adjustment screw is provided on the relay to adjust the delay time.


Reasons for using overload relays instead of bare metal:

Among the disadvantages of bimetals is that this piece is a mechanical cut and also loses its sensitivity over time and does not work properly. In addition, for each type of contactor, there is a specific bimetal. Also, because bimetals work based on temperature changes, environmental temperature changes can
