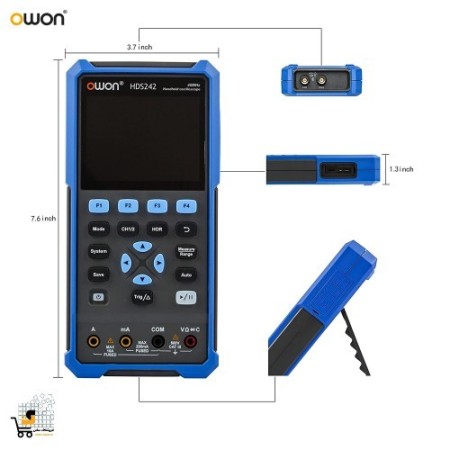

Handheld oscilloscope, multimeter and function generator, in HDS242S model device with size and portability, which are two principles that complement each other for a portable oscilloscope. The hds242s multifunctional model allows you to perform your tests from very small areas far from the laboratory environment. In oscilloscope mode up to 40 MHZ as two channels with a sampling rate of 250 MS/s, in arbitrary mode it is a single channel generator up to 25 Mhz and in DMM mode it is an autorange TRMS multimeter for measuring electrical parameters. Choosing the HDS242S hand-held oscilloscope can be one of the best choices for electrical and electronic engineers due to the fact that it has an internal battery and therefore does not need city electricity, as well as light weight during transportation. With the USB Type-C interface on the package of this device, the portable oscilloscope can be charged or connected to a computer to transfer data. Battery charging and feeding of this device is provided through this interface by power bank or adapter.
Technical Specifications:
Specifications of the oscilloscope:
40 MHz 2 channels
memory
2 props
Sampling speed 250MS/s
3.5 inch color screen
8K internal memory
10,000 wfrms/s update rate
20 types of automatic measurement
Flash USB
Maximum peak voltage: 400V
Small size and very light weight
The ability to connect to a computer with a USB Type-C port
Specifications of autorange multimeter:
20,000 counters
TRUE RMS
AC voltage: 750V and DC: 1000V
Current DC:10A and AC:10A
100.00MΩ resistance
Capacitance: 2.0000mF
Diode test and On/Off test
Frequency 40Hz-1000Hz
Generator function specifications:
Single channel 25 MHz
Output of sine, square, ramp and pulse signals with frequencies:
Sine 0.1Hz25MHz5MHz
Square 0.1Hz
Ramp 0.1Hz1MHz5MHz
Pulse 0.1Hz
EXP 0.1Hz~5MHz
Sampling speed 125MSa/s
Range in 50Ω impedance: 0.01Vpp ~ 2.5Vpp
- The weight of the device is 0.6 kg
accessories:
Power adapter, USB cable, passive probe, Susmari clip cable, multimeter probe (red and black)
User manual, probe correction adjustment screwdriver
