Areo DD50 hydraulic wagon drilling machine

Areo DD50 hydraulic wagon drilling machine

The wagon drill is a type of impact drilling machine whose powerhead is installed on the rig by the wagon and is moved up and down on the rig. This machine model is used to increase the speed and efficiency of drilling operations. This machine is used for drilling boreholes in mines, road construction, tunneling, geothermal, dam construction, etc. The wagon drill machine is designed and built in 2 hydraulic, diesel and electric models.

The new product designed by Hafar Sanat Binaloud Engineering Company is one of the types of drilling machines with a major difference in terms of movement and speed of operation and that its special feature is the possibility of being multi-purpose. It should be noted that all the components and parts of this The device designed by the engineering team of Hafar Sanat is completely new, and the possibility of servicing and maintaining it in mining and construction conditions will be easily possible.

Areo hydraulic wagon drill machine is used and operated for various applications, the main use of this machine is designed to perform exploratory and powder drilling operations. The drilling depth of Areo is 50 meters and the diameter is 100 mm or 10 cm, which is possible in different materials. will have drilling.

The use of a dust collector or dust collector can bring samples from the borehole to the desired location and be collected by the operator, and when the dust collector or collection cyclone is not installed next to the device, the operator can practically collect the drilling particles. cutting) in the opening of the borehole, it will be possible to record and store samples coming out of the hole.

Areo hydraulic machine is used for drilling boreholes in mines, road construction, tunneling, geothermal, dam construction, etc. Due to not needing to stabilize the device on the ground due to its relatively high weight, a significant saving in the execution of drilling services is obtained. Areo series is offered in different models, this model has the possibility to change the power head and drill core holes for decorative stone mines, that is, in fact, you can drill in several different ways by buying one device.

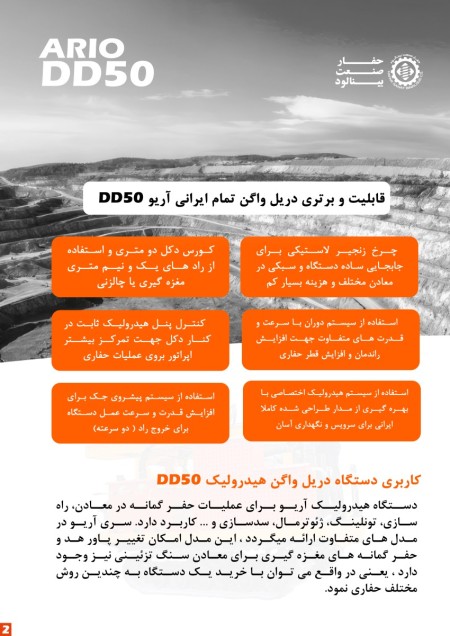

Ario DD50 capability and excellence
Use of rubber chain wheel with after sales service

Use of 4-cylinder and 3-cylinder engines according to customer's conditions and orders

Use of rotation factor according to the need of ID40, ID400 and ID100 gearboxes according to the required torque and rotation during drilling operations.

Using a mast with a course of one and a half meters for the smallness and simple handling of the device.

Using a 12 or 24 volt electric oil cooler to reduce the system hydraulic oil temperature to increase efficiency.

Compact and compact design of the device according to the arrangement of components for ease of transportation as well as easy service and maintenance.
