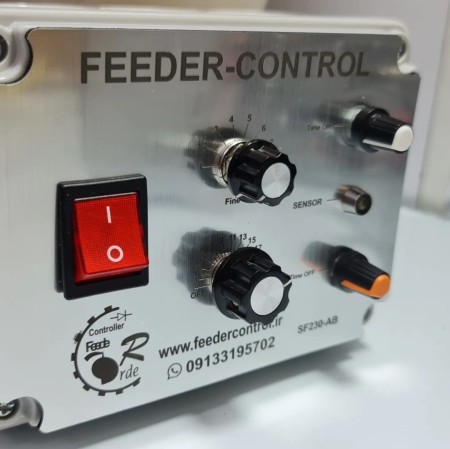

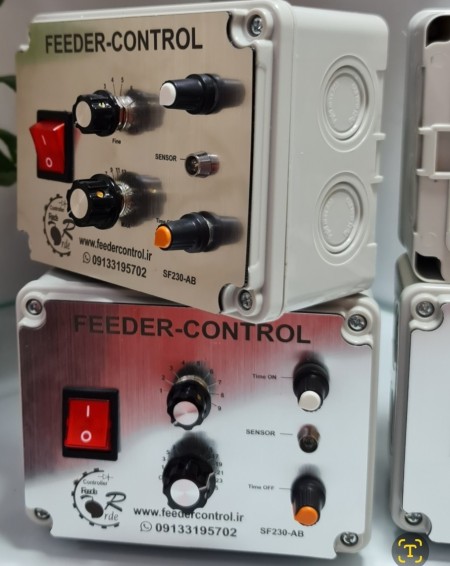

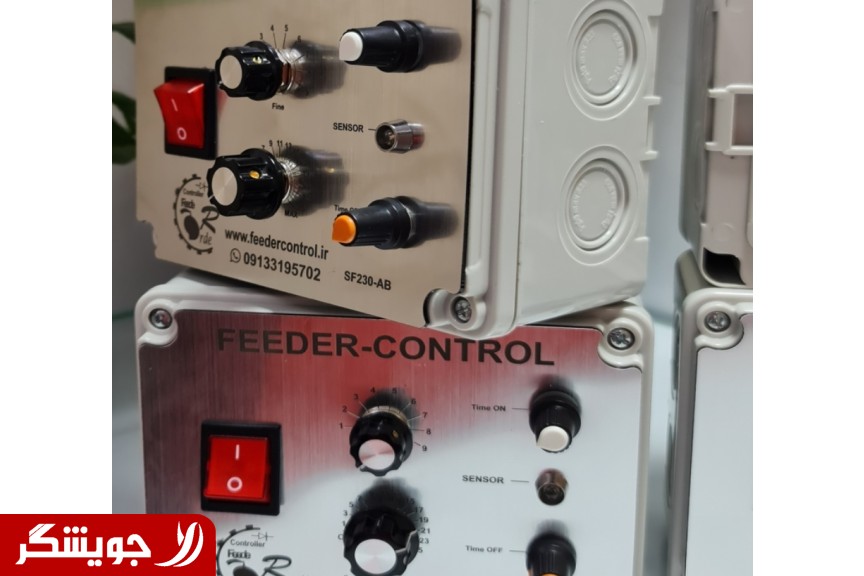

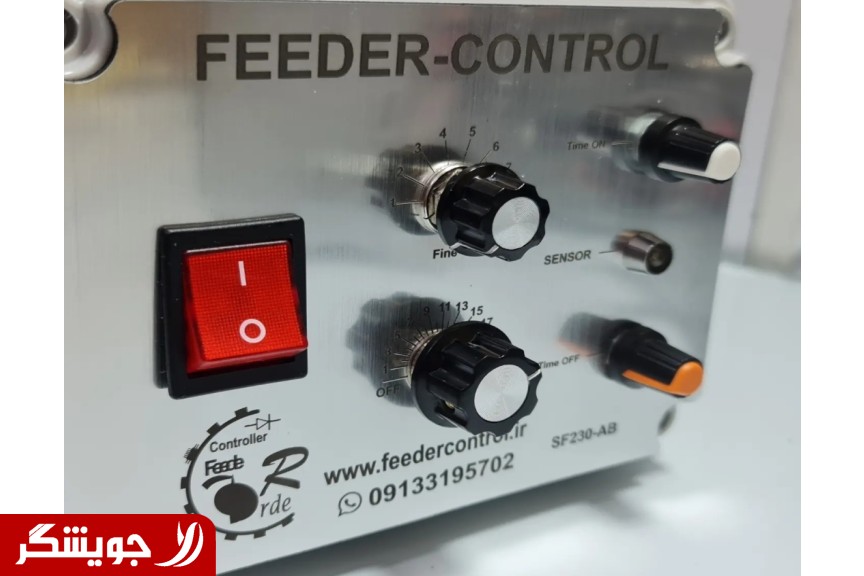

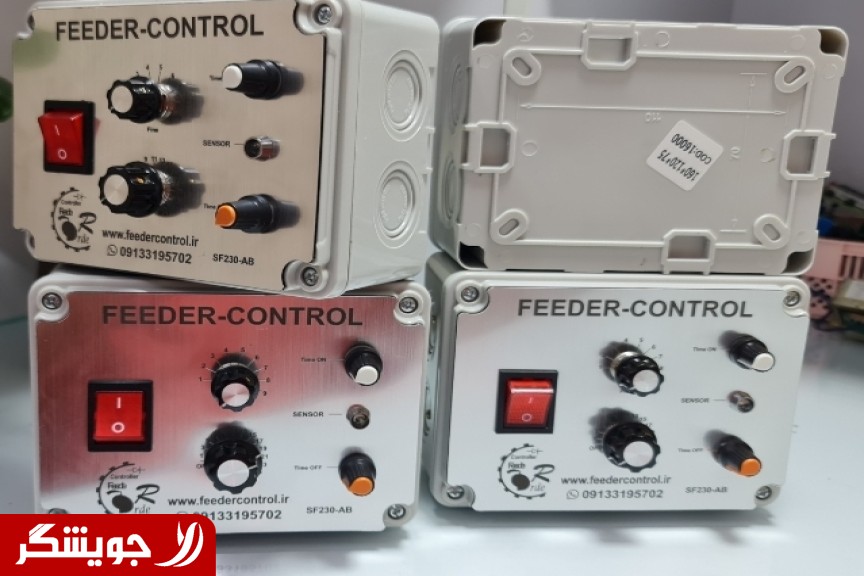

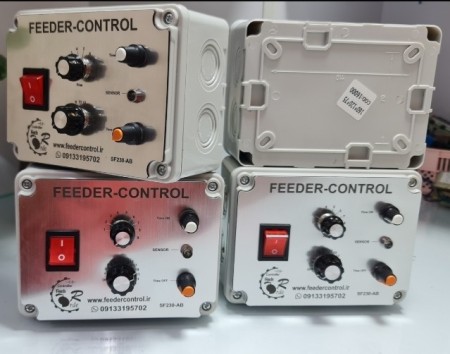

Automatic wall vibration controller

⚙️** [new installationable vibration controller](https://feedercontrol.ir/product/%da%a9%d9%86%d8%aa%d8%b1%d9%84%d8%b1-%d9%88 %db%8c%d8%a8%d8%b1%d9%87-%d8%aa%da%a9-%da%a9%d8%a7%d9%86%d8%a7%d9%84-220-% 25d9%88%d9%84%d8%aa-%d8%aa%d8%a7%d8%a8%d9%84%d9%88%db%8c%db%8c-%d8%a7%d8%aa% 25d9%88/)** Model SF230-AB⚙
Single phase working voltage 220 volts
Current 6 amps
Anti-dust and anti-pilling
The ability to choose the type of normally open or closed sensor
Two timers for disconnection delay and connection delay after detecting the part in the output rail of the sorter
Can be connected to bowl and linear sorters
Wall installation capability
Equipped with fine vibration adjustment volume
Wired industrial volumes with long working life
Big on/off switch
Sensor detection indicator
It has an additional input for disconnecting and connecting with an external controller such as PLC
PNP or NPN multisensor
It has an internal isolated 24 volt power supply
Sorter soft controller
More information and other types of vibration controllers are available on the Feeder Control site.

⚙️** [Vibration controller](https://feedercontrol.ir/product/%da%a9%d9%86%d8%aa%d8%b1%d9%84%d8%b1-%d9%88%db% 258c%d8%a8%d8%b1%d9%87-%d8%aa%da%a9-%da%a9%d8%a7%d9%86%d8%a7%d9%84-220-%d9%88 %d9%84%d8%aa-%d8%aa%d8%a7%d8%a8%d9%84%d9%88%db%8c%db%8c-%d8%a7%d8%aa%d9%88 /)** vibration controller ⚙️
Types of controllers for bowl and linear industrial transformer vibrators
- Soft and accurate control of the amount of vibration
- Soft launch
- NPN - PNP multi sensor input
-Possibility of turning on and off externally through PLC
- With 24 volt internal isolated power supply (sensor power supply)
- Input 4 to 20 mA and 0 to 5 and 0 to 10 volts isolated to control the amount of vibration through PLC
-Volume 10 accurate multitrain rounds
- Separate internal on timer and off timer with 2 adjustable volumes for automatic product sorting
- Sensor on and off display
- In industrial currents of 2 to 100 amperes for light heavy and super heavy industries of 400 watts to 40 kilowatts
- The tag voltage is 220 volts and two phases is 380 volts
Two-channel type of simultaneous bowl and linear vibration control separately
•http://www.feedercontrol.ir
• (At the bottom of the ad)2
• (At the bottom of the ad)2

⚙️ vibration controller ⚙️
Types of controllers for bowl and linear industrial transformer vibrators
- Soft and accurate control of the amount of vibration
- Soft launch
- NPN - PNP multi sensor input
- Possibility of turning on and off externally through PLC
- With 24 volt internal isolated power supply (sensor power supply)
- Input 4 to 20 mA and 0 to 5 and 0 to 10 volts isolated to control the amount of vibration through PLC
-Volume 10 accurate multitrain rounds
- Separate internal on timer and off timer with 2 adjustable volumes for automatic product sorting
- Sensor on and off display
- In industrial currents of 2 to 100 amperes for light heavy and super heavy industries, powers of 400 watts to 40 kilowatts
- The tag voltage is 220 volts and two phases is 380 volts
Two-channel type of simultaneous bowl and linear vibration control
