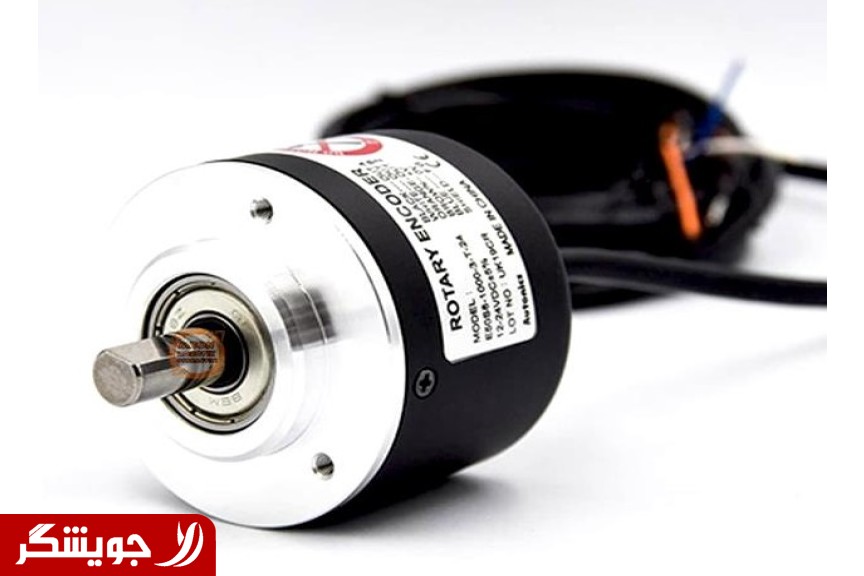

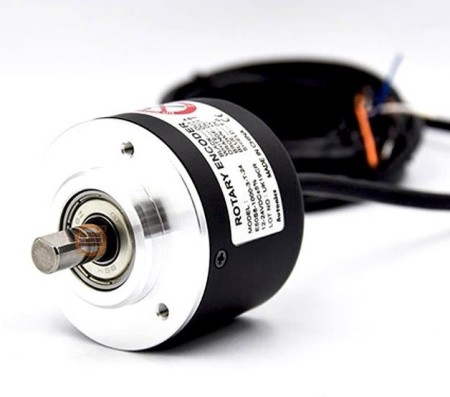

Encoder 1024 Pulse Atonics, size 50, 8 mm shaft, 5 volts, 3 wires

**[HMI Delta DOP-B07S411](https://www.automation24.ir/product-712/hmi-%25D8%25AF%25D9%2584%25D8%25AA%25D8%25A7-dopb07s411)**\r\n\r\n\r\n\r\n**HMI:**\r\n HMI stands for Human Machine Interface and means an intermediary between man and machine. HMIs are widely used in industry. In fact, due to the special conditions of communication with PLC, HMIs are used for this purpose to command controllable equipment and tools. With HMI, you can easily draw the graphic diagram of the equipment and use its internal memory to issue the desired command to any of the equipment programmed in the PLC. HMI has an environment for information exchange and mutual communication between electromechanical systems and the user. Allows the user to view and control the current state of the system. For example: different values ​​of temperature, pressure, time of operation reports in different periods of time, status of inputs or outputs, display of device errors and recording them in the memory can be done and viewed by this device.\r\n \r\n\r\n## Specifications of HMI Delta DOP-B07S411:\r\n\r\n1. 7 inches\r\n2. 800 x 480 pixels\r\n3. 65536 colors, TFT LCD\r\n4. 3 sets of COM ports, supporting RS-232 / RS-422 / RS-485\r\n5. Download to transfer data via RS-232/USB\r\n6. USB host support for direct connection to USB flash, printer and mouse\r\n7. In accordance with the IP65 standard\r\n8. Horizontal/vertical screen support\r\n9. Compatible with Windows XP, Windows Vista, Windows 7 operating systems\r\n10. DOPSoft editing software. \r\n\r\n**[Click here to view Delta products.](https://www.automation24.ir/product/list/search?keywords=&in_description=1&category_id=0&inc_subs=1&manufacturer_id=5&pfrom=&pto=)**\r\n\r\n### General differences of HMIs:\r\n\r\n1- With touch or key pages.\r\n2-Serial communication through two ports 485-RS ​​and 232-RS.\r\n3- Simulation.\r\n4- The ability to become a slave.\r\n5-Having a USB port to send and receive programs.\r\n6- The possibility of storing information.\r\n7-Having macro capability to perform calculations and logical actions.\r\n8- Can be connected to all kinds of PLCs.\r\n9- Ability to connect to inverter, servo drives, and any device that has 485-RS ​​port.\r\n10- The ability to display information as a curve or diagram.\r\n11- Ability to show animation.\r\n12- Having RTC in order to function on certain dates and times.\r\nIn fact, HMI is a graphic program in which the display keys, hands, etc. are created by graphic shapes.\r\nMeanwhile, HMIs have the ability to connect to 255 devices at a time and display their parameters.

**[Inductive sensor Atonix PFI25-8DP2] (https://www.automation24.ir/product-151/%25D8%25B3%25D9%2586%25D8%25B3%25D9%2588%25D8%25B1-%25D8%25A7 %25D9%2584%25D9%2582%25D8%25A7%25DB%258C%25DB%258C-%25D8%25A2%25D8%25AA%25D9%2588%25D9%2586%25DB%258C%25DA%25A9%25D8%25B3- pfi258dp2)**\r\n\r\n\r\n## Main features:\r\n1. \r\n2. 8mm detection distance\r\n3. Suitable for installation in a narrow space due to the flat structure (height: 10 mm)\r\n4. Protected against positive and negative polarity reversal, overcurrent (DC type)\r\n5. LED status display\r\n6. Suitable replacement for micro switch and limit switch\r\n7. Increasing the level of protection of three-wire sensors against interference\r\n8. Long life and easy application\r\n9. IP67 protection level\r\n\r\n\r\n\r\n\r\n**[Click here to view Atonix products.](https://www.automation24.ir/product/list/search?keywords=&in_description=1&category_id=0&inc_subs=1&manufacturer_id=3&pfrom=&pto=)**\r\n\r\n\r\n\r\n### Inductive sensor:\r\n\r\nThese types of sensors are non-contact sensors that work based on the change of induced current in a coil. In this type of sensors, an electromagnetic field is generated and the output of the sensor changes as the metal approaches. These sensors react only against metals.\r\n\r\n\r\nThe operation distance of induction sensors mentioned in their main specifications is measured based on the use of steel metal, and if other metal than steel is used, the switching distance of the sensor will change. In the opposite table, the conversion factor of some metals is mentioned. For example, when an inductive sensor reacts against steel from a distance of 10 mm, the same sensor reacts against copper from a distance of 4.5 mm.

**[Shiwa Amwaj dual tariff analog watch:](https://www.automation24.ir/product-3405/%25D8%25B3%25D8%25A7%25D8%25B9%25D8%25AA-%25D9%2581%25D8 %25B1%25D9%2585%25D8%25A7%25D9%2586-%25D8%25AF%25D9%2588-%25D8%25AA%25D8%25B9%25D8%25B1%25D9%2581%25D9%2587-%25D8%25A2% 25D9%2586%25D8%25A7%25D9%2584%25D9%2588%25DA%25AF-%25D8%25B4%25DB%258C%25D9%2588%25D8%25A7-%25D8%25A7%25D9%2585%25D9%2588% 25D8%25A7%25D8%25AC-%25DA%25A9%25D8%25AF-12c1)**\r\n\r\n\r\n\r\n\r\nBy using Shiva Amwaj\'s dual tariff analog clock, you can turn on and off the electrical appliances (lights, etc.) in the easiest way automatically at the desired hours.\r\n\r\n\r\n## The features of Shiva Amwaj dual tariff analog watch:\r\n\r\n1. Full protection against dust\r\n2. It has a rechargeable battery\r\n3. The ability to seal the device\r\n4. Very easy and simple adjustment\r\n5. Replaceable fuse on the device panel\r\n6. It has 4 indicators to display different programs\r\n7. High accuracy of time measurement due to being independent from the frequency of city electricity\r\n8. It has 3 displays for AC notifications: network electricity NO: first tariff NC: second tariff\r\n\r\n**[Click here to view Shiva Amwaj products.](https://www.automation24.ir/product/list/search?keywords=&in_description=1&category_id=0&inc_subs=1&manufacturer_id=19&pfrom=&pto=)**\r\n \r\n\r\n## Technical specifications of Shiva Amwaj dual tariff analog watch:\r\n\r\n1. Supply voltage: between 100 and 250 volts (50 and 60 Hz)\r\n2. Reservation charge: more than 1800 hours (75 days)\r\n3. Minimum time of turning off and turning on in one period: 1.5 hours\r\n4. Base quarter time with an error of 5 minutes per year\r\n5. 3 amp relay output\r\n6. Efficiency in temperature: -20 to +65 degrees Celsius\r\n7. Efficiency in humidity: 70%

**[RTP6 rail terminal] (https://www.automation24.ir/product-407/%25D8%25AA%25D8%25B1%25D9%2585%25DB%258C%25D9%2586%25D8%25A7%25D9%2584 -%25D8%25B1%25DB%258C%25D9%2584%25DB%258C-rtp6)**\r\n\r\n \r\n\r\nTerminals in the electrical industry play the role of communication between several devices. In fact, we use terminals so that we can easily wire and assemble the panel. Terminals are made in different types. Some terminals are rail and are placed inside the board and on the rail. This category of plastic terminals is used for two-wire communication and provides electricity.\r\n\r\n \r\n\r\nThe terminals are available in different sizes as well as single-story and multi-story. Some of these terminals that can be used for earthing are a combination of plastic and metal to connect with the body. Also, some terminals are simple and can be divided into the body of the box or screwed to the panel. These terminals can be made of plastic or cao chu.\r\n\r\n \r\n\r\nIn general, lightning terminals play the role of connection between two devices for simplification and easier troubleshooting. Because you can dial the number on the terminals and find the connection between the equipment according to the terminal number, so it helps a lot during troubleshooting.\r\n\r\nAlso, some terminals are multi-story, and these terminals can be used in places where there is little space and many control wires are stretched.\r\n\r\n\r\n\r\n**[Click here to view Raad products.](https://www.automation24.ir/product/list/search/?manufacturer_id=7&pageItems=120)**\r\n\r\n\r\n## Strengths\r\n \r\n\r\n Ease of installation, saving time and money\r\n Secure connection between cable and current carrying parts\r\n It has an insulated body made of polyamide and heat resistant\r\n Easy cable connection without the need for tools\r\n Can be installed on the TH35 rail\r\nSuitable for all types of cables\r\n \r\n\r\n## Points to know when buying a terminal:\r\n\r\nAllowed amperage of the terminal\r\nTerminal size\r\nNumber of terminal floors\r\nAppearance of the terminal\r\nCan be installed on the rail or not

[Kaken three-phase SSR relay KMSR-DT1004] (https://www.automation24.ir/product-3623/%25D8%25B1%25D9%2584%25D9%2587-ssr-%25DA%25A9%25D8%25A7%25DA %25A9%25D9%2586-%25D8%25B3%25D9%2587-%25D9%2581%25D8%25A7%25D8%25B2-kmsrdt1004)\r\n\r\n\r\n\r\nSSR stands for Solid State Relay which means electronic switches or solid state relay. SSR can be described in this way that its function is similar to an electromechanical relay, except that there are no moving parts in these relays. In fact, SSR is an electronic switching element in which a larger current or voltage can be controlled with a control signal. Since there are no moving parts in SSR, this relay has advantages over other relays.\r\n\r\n\r\n**[Click here to view Kaken products.] %25DA%25A9%25D9%2586-%25D8%25B3%25D9%2587-%25D9%2581%25D8%25A7%25D8%25B2-kmsrdt1004)**\r\n\r\n\r\n\r\n\r\n## Application:\r\n1. Hitters\r\n2. They are used wherever high keying is desired.\r\n3. Important note: In order to increase the life of SSRs, it is better to use a cooler to remove the generated heat at high currents.\r\n\r\n## When buying SSR, you should pay attention to the following points:\r\n\r\n1. SSR supply voltage\r\n2. SSR output voltage\r\n3. Its phase number\r\n4. Allowable flow\r\n5. Disconnection and connection time

** [Art tester Kyuritsu 4300] (https://www.automation24.ir/product-794/%25D8%25A7%25D8%25B1%25D8%25AA-%25D8%25AA%25D8%25B3%25D8%25AA%25D8 %25B1-%25DA%25A9%25DB%258C%25D9%2588%25D8%25B1%25DB%258C%25D8%25AA%25D8%25B3%25D9%2588-4300)\r\n\r\n\r\nEarth meter:\r\nWhat is the need to use the earth system?\r\n\r\nIn order to protect people and devices, overvoltages generated in the body that cause damage to devices and people, as well as extremely high and dangerous voltages caused by lightning strikes with computer towers, must be neutralized in place. And the protection of equipment is very necessary and necessary. In addition, with the increase in the use of digital and sensitive systems, there is a need to review the design, installation and maintenance of grandiose protection systems.\r\n\r\n## The goals of using earthing or grounding system are:\r\n\r\n1- Protection and safety of electrical and electronic devices and equipment\r\n\r\n2- Protection and safety of human life\r\n\r\n3- Providing ideal working conditions\r\n\r\n4- Removal of excess voltage\r\n\r\n5-Prevention of unwanted voltages and lightning\r\n\r\n\r\n\r\n\r\n\r\n**[Click here to view Kyoritsu products.](https://www.automation24.ir/product/list/search?keywords=&in_description=1&category_id=0&inc_subs=1&manufacturer_id=13&pfrom=&pto=)**\r\n\r\n\r\nNow the necessity and assurance of having a healthy earth system is necessary for working with the equipment. Meanwhile, in order to obtain the correctness of the earthing system, a device is needed to give this assurance to the consumer. Earth meter or earth resistance testing device is designed and built for this purpose.\r\n\r\n\r\nEarth meter is used to measure electrode and soil resistance. Measuring the earth\'s resistance with a three-wire earth meter using two auxiliary nails is one of the most common methods of well earthing. In this method, an electrode and an auxiliary nail are used, which are placed in the same direction and at certain distances of about 15 to 10 meters from each other. They take it and connect it to the device using the connecting wires of the earth meter cable.\r\n\r\nThe earth tester device measures the voltage drop in the area between the electrode and the auxiliary nail close to the electrode, and then the device can automatically calculate the ground resistance value by using Ohm\'s law V=RI by creating a constant alternating current with the farthest auxiliary nail.\r\n\r\n\r\n\r\n### Art Tester Curisto 4300:\r\n\r\nCuristo 4300 earth meter is a simplified ground resistance tester (using Method 2 of Paul). Using this device, in addition to very easy measurement of ground resistance, you can also measure AC and DC voltage.\r\n\r\nThe distinguishing advantage of Kyoritsu 4300 earth meter with other earth meters is that in this device, you can measure the earth resistance with two built-in props. In this way, one of the probes is connected to the ground and the other one is connected to the zero, and we measure the resistance of the earth in this simple way. But other models of the earth resistance tester have three probes, each of which must be connected to the earth at a distance of a few meters in order to obtain the value of the earth resistance. \r\n\r\n## Other features of Kyoritsu 4300 Earth Tester:\r\n\r\n1. Has a warning color for resistance of 100 ohms or more.\r\n2. The LED lights the ground voltage until the discharge

**[Ammeter 48*96 Shiva waves code 21U1](https://www.automation24.ir/product-911/%25D8%25A2%25D9%2585%25D9%25BE%25D8%25B1-%25D9%2585% 25D8%25AA%25D8%25B1-96*48-%25D8%25B4%25DB%258C%25D9%2588%25D8%25A7-%25D8%25A7%25D9%2585%25D9%2588%25D8%25A7%25D8%25AC- %25DA%25A9%25D8%25AF-21u1)**\r\n\r\n\r\nIt can be installed on the TH35 rail along with other terminals. It has a yellow-green insulating body made of polyamide material designed to provide a suitable electrical and mechanical connection with the rail for the main protection bus. It is similar to the RTP series terminals in terms of design details and features. Regarding the optimal use of usable space for PE and PEN busbars, it should be noted that for PEN busbars, a terminal with a cross section greater than 10mm is used.\r\n\r\n## Strengths\r\n1. Can be installed on the TH35 rail\r\n2. Made of fire-resistant polyamide materials, with excellent mechanical and electrical properties\r\n3. High quality metal plating coating\r\n4. With a protective cap\r\n5. High strength rail connection\r\n\r\n\r\n**[Click here to view Shiva Amwaj products.](https://www.automation24.ir/product/list/search?keywords=&in_description=1&category_id=0&inc_subs=1&manufacturer_id=19&pfrom=&pto=)**\r\n \r\nThe 48x96 Shiva ammeter with single-phase power supply has the ability to measure and display the passing current from 0.01 amps to 6000 amps in different CT ranges. This device is equipped with a maximum current recording system and the current measurement method is average and TRUE RMS.\r\n\r\n\r\n## Features of ammeter 96x48 Shiva Amwaj\r\n1. Current measurement and display in two average and TRUE RMS methods\r\n2. Record and display the maximum current\r\n3. Ability to adjust CT and display it\r\n4. Ability to precisely adjust CT to calibrate CT\r\n5. Display of overcurrent fault from CTs\r\n6. 4 indicators for announcement\r\n7. AVERAGE: Normal flow\r\n8. TRUE RMS: real current\r\n9. MAX: Maximum current\r\n10. CT: CT setting and its display\r\n11. Ability to accurately adjust CT for calibration\r\n\r\n\r\n### Device setting keys\r\n▲: increasing the value of CT in CT adjustment mode and its error, zeroing the maximum recorded current\r\n▼: Reduction of CT value in CT adjustment mode and its error\r\n◄: Select one of the 4 display modes of the device\r\n \r\n\r\n### Technical specifications of Shiva Amwaj ammeter 96x48\r\nSupply voltage: 180-250V AC/ 50-60 Hz\r\nCurrent measurement accuracy: 0.5%±1 digit\r\nStandard CTs adjustable on the device: 5/(5~6000) CT \r\nCT setting time: from the time of power on for 5 minutes\r\nEfficiency in:\r\nTemperature -20 to +65 degrees Celsius\r\nhumidity 70%\r\n\r\n\r\n### Things to know when buying screens are:\r\n\r\n1- Display power supply voltage\r\n\r\n2- Accuracy of current measurement\r\n\r\n3- Ability to measure True Rms current\r\n\r\n4- The number of indicators\r\n\r\n5- Appearance and type of installation
