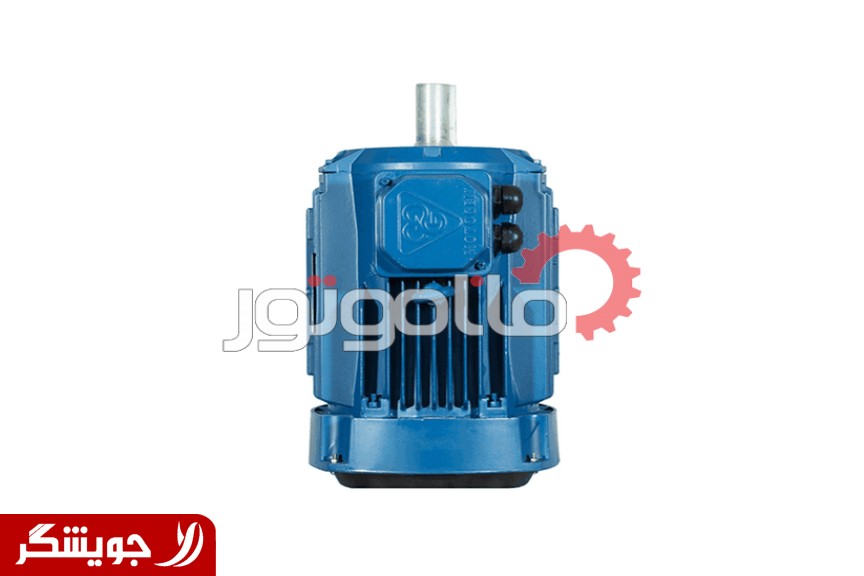

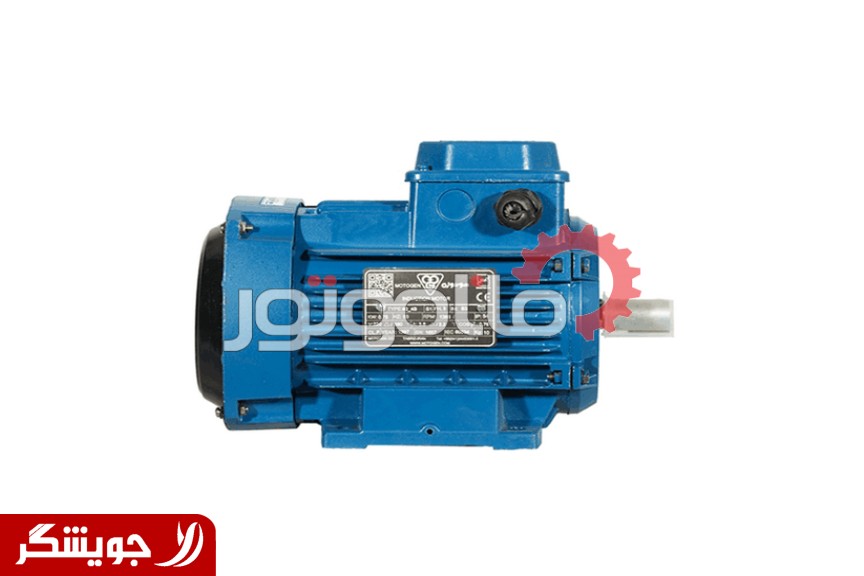

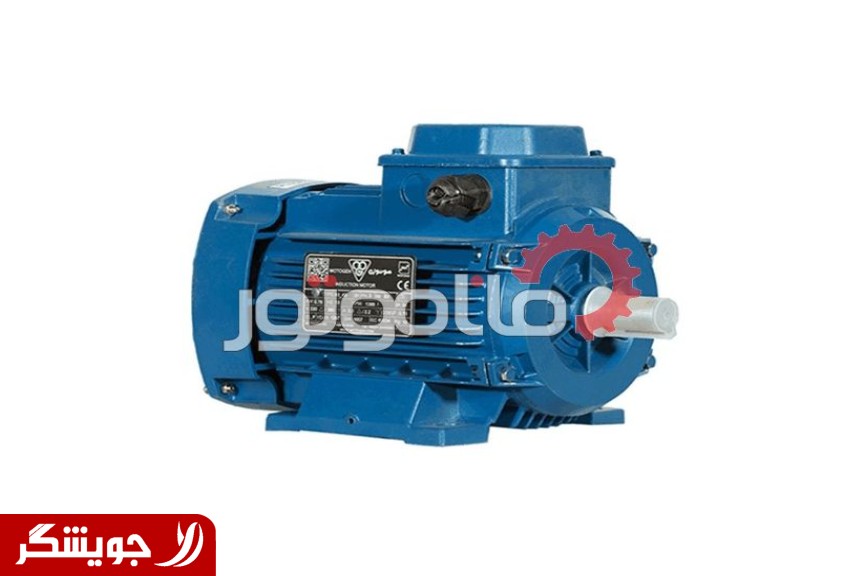

Motogen three-phase electric motor, 3 horses, 2.2 kW, 1500 revolutions, aluminum shell
Made in Iran\r[http://nhttps://www.manamotor.com/motogen-3hpx4p/100-3ph
Weight](http://nhttps://www.manamotor.com/motogen-3hpx4p/100-3ph
Weight) (grams) 18200\ r\nWorking voltage 220/380 volts, three phases
Power 2.2 kW - 3 horses
Frame size of motor body Size 100 | d=28mm
Type of base and flange B3 | With base
Dimensions 233x200x306mm
Output shaft diameter 28mm
Output shaft length 60mm
Key8x40 shaft connection
Rated speed 1410RPM
Number of poles 4 bridges (1400 turns)
Torque Rated 15.194N.m
Initial starting torque between 2 and 3.5 times the rated torque
Maximum torque between 2 and 3.5 times the rated torque
Rated motor current 380V 5.16A | Starting 380V 5.2 times nominal | 220 V mode 1.7 times
Aluminum shell material
COS Fi power factor 0.8
Efficiency 81%
Ins Class CLASS F
Environmental conditions Impenetrable degree IP54
Additional information Output shaft connection Key8x40
Shipping time 1 business day
