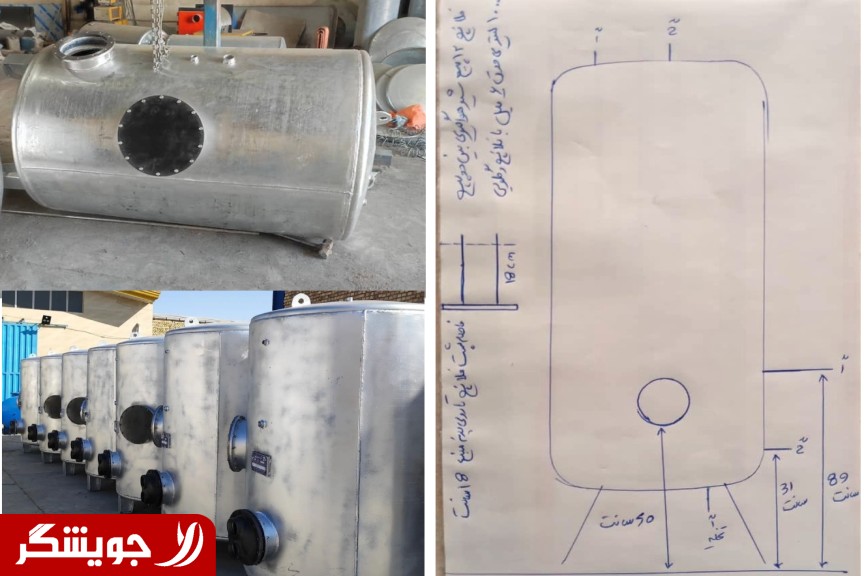

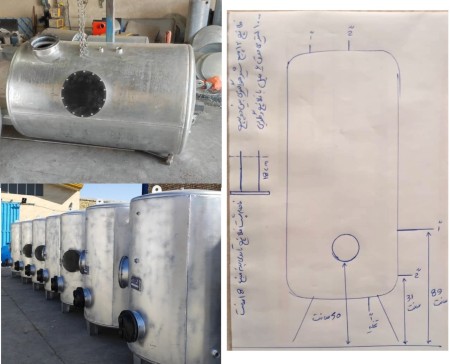

Vertical and horizontal coil source


What is a coil source?
Azin Ventilation is a supplier of all types of vertical and horizontal coil sources, sales department phone number (At the bottom of the ad)more information on Azin Ventilation website at >>

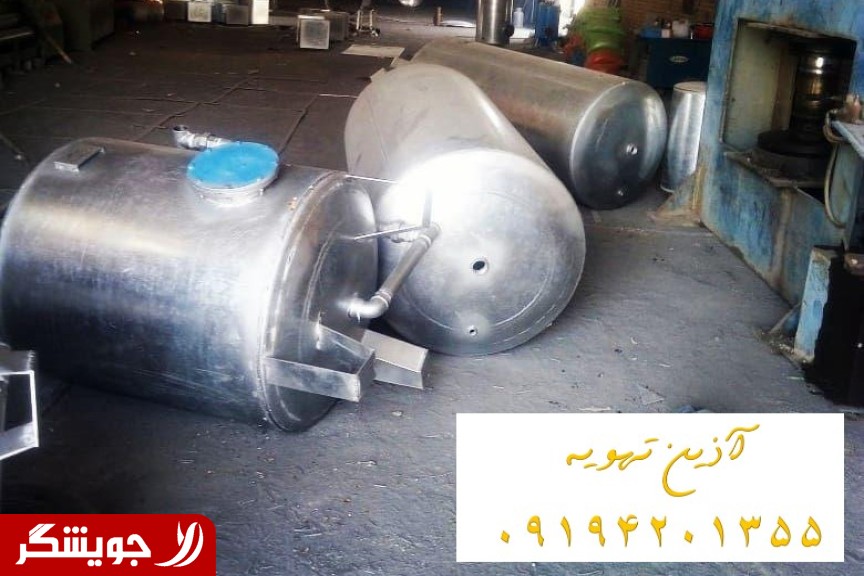

A coil source is a set of cylindrical body and several copper pipes (coils) where the hot water and steam coming out of the boiler enter the coils and the cold water enters the tank. It heats a cylinder. The coil source is actually a new generation of double-walled source, which is used for supplying hot water to buildings and industrial environments. Of course, there are differences in the structure of these two sources, in other words, the main difference between the double-walled source and the coiled tank is the presence of two cylindrical tanks inside each other in the double-walled type. This is while only one cylindrical body is used for coil sources and temperature exchange is done with coils.
How does the coil source work?
Hot water and steam produced by boilers and steam boilers. With the help of circulator pumps, it enters the copper pipes or the source coil, which is located inside the cylindrical body. The cold water of urban plumbing enters the tank through one-way valves installed on the body of the source, and due to the temperature difference between the water inside the pipe and the tank, temperature exchange takes place. The result of the contact of the tank water with these pipes is an increase in their temperature to more than 50 degrees and finally they are prepared for consumption through the outlet valves. The water in the coils is returned to the boiler with the loss of temperature and this cycle continues. They design their coil source in different types. In a general classification, we divide them into two groups: vertical coil source and horizontal coil source. The difference between these two types of coil sources is in the installation mode of their cylindrical bodies, and they are not different from each other in terms of other components. According to the installation location of the source and the amount of space available to place the source and their required dimensions, one of these two types of coil source can be chosen. These sources can be divided into spiral and U-shaped coil groups. The price of the coil source is according to the tank capacity, the thickness of the coil source sheet, the type of coil tube and the thickness of the coil tube. Ability to determine the approximate price. Of course, the amount of warranty, the form of construction and the quality of the coil source are effective in the price of coil sources.
