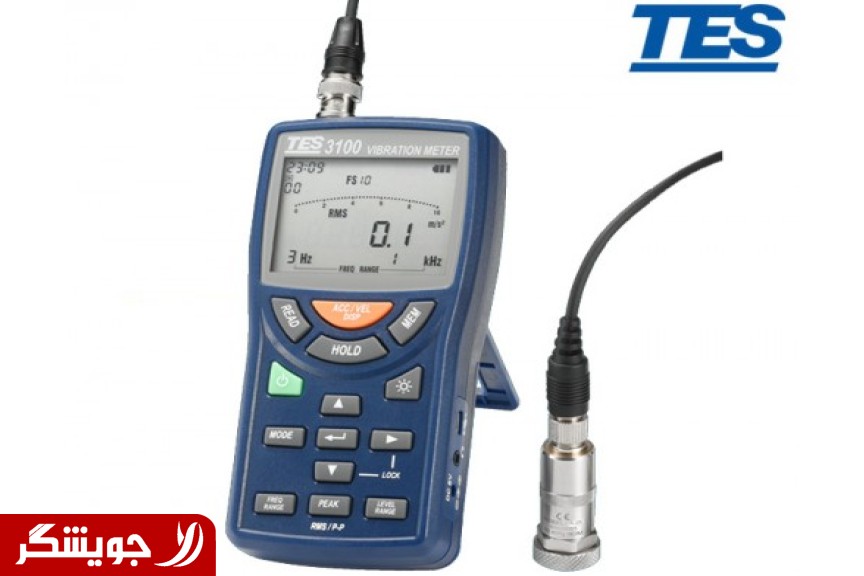

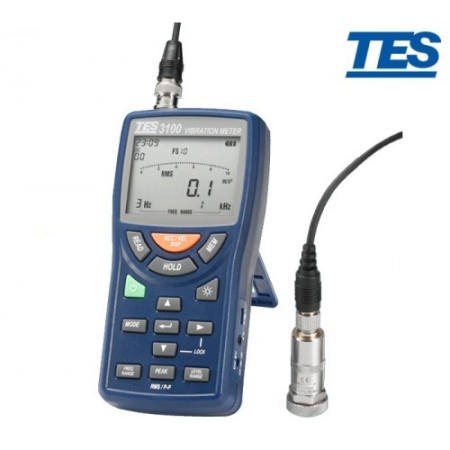

Vibration meter model TES-3100 made by TES company in Taiwan
TES-3100 Vibration Meter is a digital vibrometer with a piezoelectric sensor that can measure the range of vibrations including three parameters: speed, acceleration and displacement. The piezoelectric vibration sensor senses the vibratory motion (mechanical energy) and converts it into an AC electrical signal corresponding to the vibratory motion. In order to measure vibration with this vibration meter, the sensor must be kept manually in the desired location. The vibration meter is used to control the vibration of rotating tools and machines such as turbine, generator, pump, bearing, motor, fan, etc.
Technical Specifications:
Vibration meter with piezoelectric sensor (PA-01)
High sensitivity up to 5MV/m/s2
Measuring range:
Acceleration (ACC):
0.02200m/s² EQ PEAK 1Hz to 5kHz1000mm/s RMS 3Hz to 1kHz
Velocity (VEL):
0.3
0.11000mm/s RMS 10Hz to 1kHz100mm EQ PEAK 3Hz to 500Hz
DISP:
0.02
0.001100mm EQ PEAK 10Hz to 500Hz1kHz, 3Hz
Frequency measurement range:
ACC (acceleration):
3Hz5kHz, 1Hz100Hz, 3Hz20kHz1kHz, 3Hz
VEL (speed):
10Hz1kHz500Hz, 3Hz~500Hz
DISP:
1Hz
Manual memory: 100 items
Ability to record the highest and lowest amount of data
Ability to display vibration values including acceleration, speed and displacement as RMS, EQ PEAK, EQ P-P
