Order to build a capacitor bank

Order to build a capacitor bank

By installing a capacitor bank, you can get rid of skyrocketing electricity bills, but how? As you know, most industrial units have both active power, meaning useful, and reactive power, meaning non-useful. The presence of non-ohmic loads such as electric motors (washing machines, water and gas coolers are among them) and fluorescent lamps, etc., creates a reactive load in the network, and this reactive load can be converted into an active load by a factor called a capacitor. And since the meter is installed The power grid only calculates the useful power at the normal rate, if we want to receive reactive power from the power grid. Because we receive more reactive power from the electricity department, we have to pay more with a higher coefficient than the active power; For this reason, we face staggering electricity bills, but what is the solution? The solution is to use a capacitor bank. Surely you would like to know what is a capacitor bank? The capacitor bank comes to the aid of the power grid and converts the reactive powers into active ones, and this issue makes us say goodbye to the staggering electricity bills. If you want to know more about the capacitor bank, its constituent parts, the steps of installing and setting up the capacitor bank, its types, etc., follow this article.

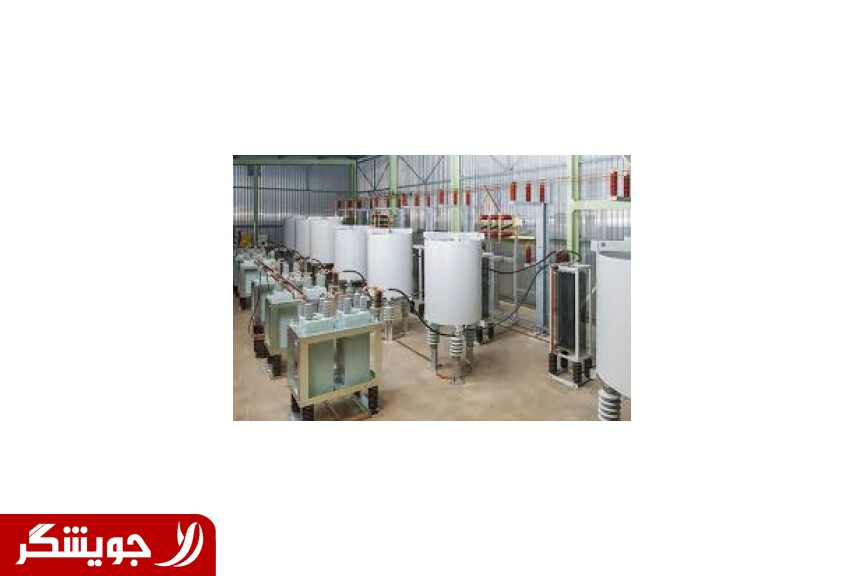

What is a capacitor bank? As we mentioned at the beginning of this article what is the capacitor bank question, we must say that the function of the capacitor bank is to store and smooth the level of electrical energy. A capacitor bank is a group of several capacitors that may be connected in series or parallel and, like a full capacitor, is used to store electrical energy and regulate energy flow.

The capacitor capacity formula is such that increasing the number of capacitors in a bank increases the energy capacity stored on the device. Basically, the capacitor bank is one of the types of switchboards that are used by factories, industrial and residential units and electricity consumers in general.

To better understand the efficiency and performance of the capacitor bank, it is necessary to know that the power of the power grid is consumed in two ways: active or reactive. When the lamps in the house are on, or when we are ironing clothes. In general, the electrical energy consumed is active power. Many devices with other types of energy, such as washing machines, air conditioners, and water coolers (almost most motor loads) have reactive power. The presence of reactive power in the power grid increases the amperage of energy consumed and we have to pay more to the electricity department.

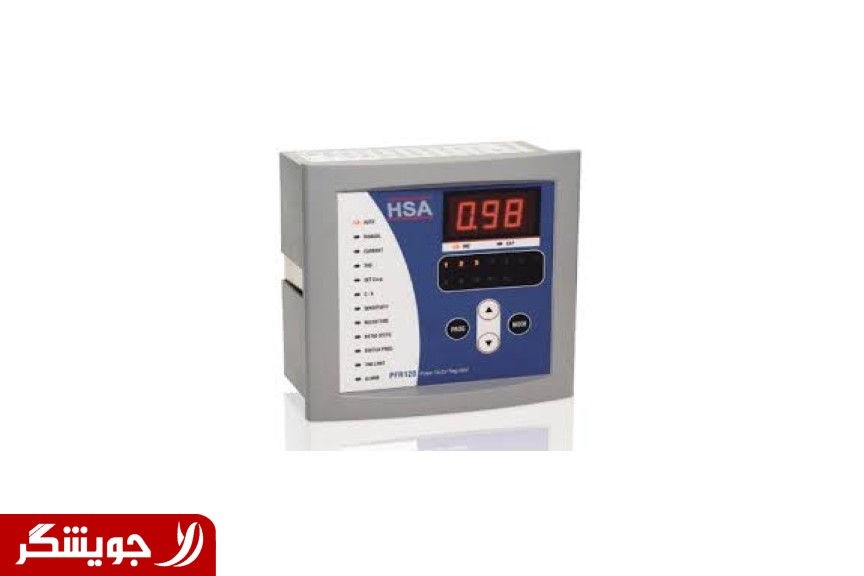

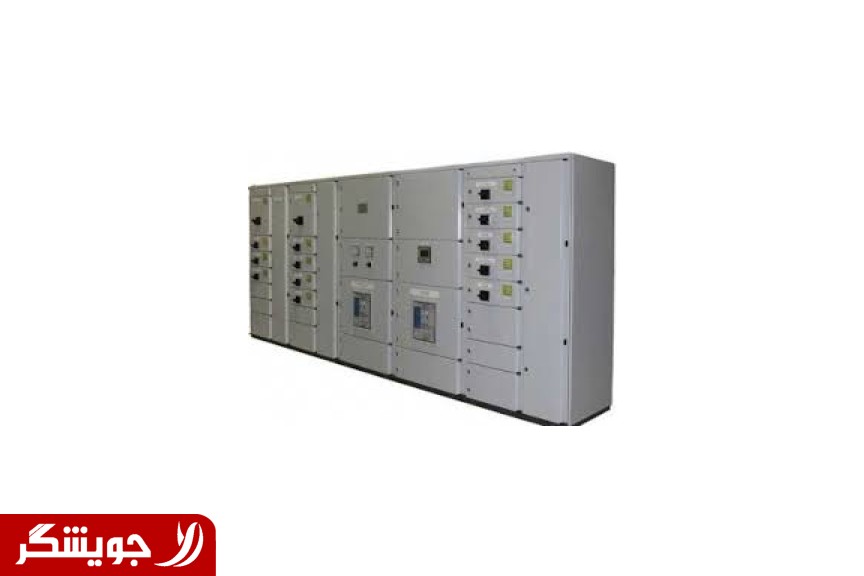

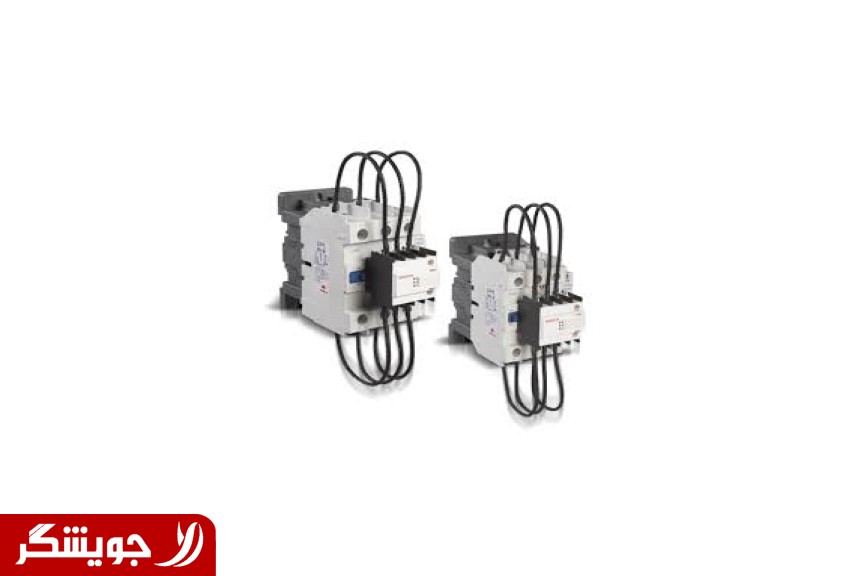

Capacitor bank components Now that you got the answer to the question of what is a capacitor bank, it is time to learn about the components of a capacitor bank. According to its type and application, the capacitor bank has different components, which include: switchboard, three-phase capacitor, capacitor bank regulator, capacitor contactor, input switch, fuse switch, harmonic filter, busbar, rotary switch, etc.

The capacitor bank introduces the capacitor load into the circuit and does not need much power to start the electric motor from the power grid. Capacitor Bank N
