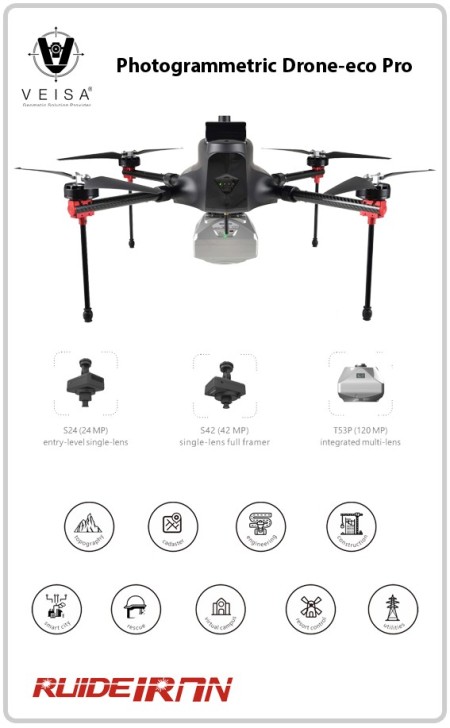

Photogrammetric UAV Multi-Rotor Surveying eco-pro

Photogrammetric UAV Multi-Rotor Surveying eco-pro

UAV Photogrammetric Surveying RUIDE

Photo-Metric UAV Multi-Rotor Surveying Nikon Japan

Model: RUIDE Drone-eco pro

Click here to see the video start, landing and features of this multi-rotor drone.

Type: X-shaped four-bladed body with folding propellers Vertical and direct take-off and landing

Structure: Fully integrated and ready without the need for assembly / reopening

Maximum device length: 716mm

Dimensions : 564 x 564 x 360 mm (L x W x H)

Weight with battery: 5.15Kg without battery: 2.35Kg

Maximum load capacity: 1.4Kg

Maximum flight weight: 6.55Kg

Power supply type: Integrated lithium polymer battery

Battery specifications: 25,000 mAh 26.1V - 6S

Battery charging time: About 1.5 hours per 15 amp current

Obstacle sensor: 0.7 to 40 meters, millimeter wave radar detection

Laser laser rangefinder down : 10 meters, for more precise landing control

with Latest service limit: 4000 meters above sea level

Operation altitude: 60 to 1000 meters

Maximum flight speed: 12 meters per second

Uninterrupted performance rate : 80 minutes without load / 70 minutes with one lens / 60 minutes with five lenses

Preparation speed: Adjust in less than 3 minutes - Door assembly and packing in less than three minutes

Climate limit: Beaufort scale 6 (wind speed between 40-50 km / h)

Operation temperature: -20-50 ° C

Humidity in humidity: 90% density

Resistance standard: IP 45

Positioning system: Dual redundancy design

GNSS satellite guidance system: GPS + Glonass + Galileo + Beidou tracking

Positioning modes: GNSS RTK / PPK

Data update rate: RTK: 100Hz - PPK: 5/10/20Hz optional

Suspension accuracy: Horizontal: 1cm + 1ppm Vertical: 2 cm + 1ppm

Fixed positioning accuracy: Horizontal: 1cm + 1ppm Vertical: 1.5cm + 1ppm

Relative accuracy (XY / Z): 1-3x GSD / 1-5x GSD

Navigable length per flight: about 50km) at a speed of 12m / s with a lens)

Range to be covered per flight: Maximum 6 km2 (with 10 cm lock (GSD)) and carrying a lens

Memory type for data storage: Micro SD card - 16 GB

Output interface: Micro USB

How to interact with the operator: LED indicator and Web UI

Remote control

How to transfer data: WiFi + type C + RD-link

Internet connection: via SIM card

Frequency control: 2.4 to 2.483 GHz

Communication channels: more than 12

Radio communication range: up to 30 km

Power transmission: 20 dBm @CE / 23 dBm @FCC

Output display: 7-inch LED with Android operating system

Duration time: 6 to 20 hours

Upgradeable: Has

Capacity

Heat connection: Normal flange interface

Power supply: External and powered by UAV battery

Control handle type: Flight control system control handle

Time adjustment: Based on deployment area

Device options: with one lens, with multiple lenses and ...

Transportation options 1: S24, customized single lens, 24.3 MP, 25 mm lens, 266 g

Transport options 2: S42, customized single lens, 42.4 MP, 35 mm lens, full frame, 336 g

Transport options 3: T53P, customized 5-lens (45 ° lateral lens x 4, 35 mm; center lens, 25 mm), 120 MP in total, 750 g

Price of this exceptional product with single lens model S24 - 24.3MP only 350,000,000 (1401 / 02/25)

The price of this exceptional product with single-frame full-lens input, model S42 - 42.4MP, only 380,000,000 T (1402/02/25)
