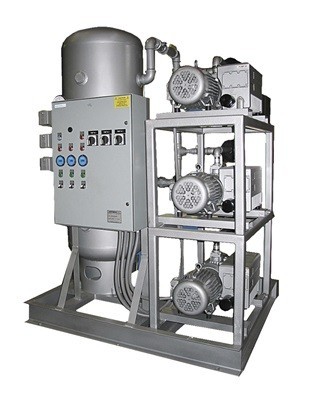

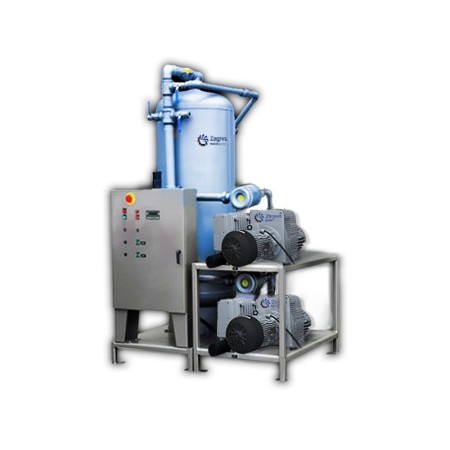

Vertical central vacuum system

Vertical central vacuum system

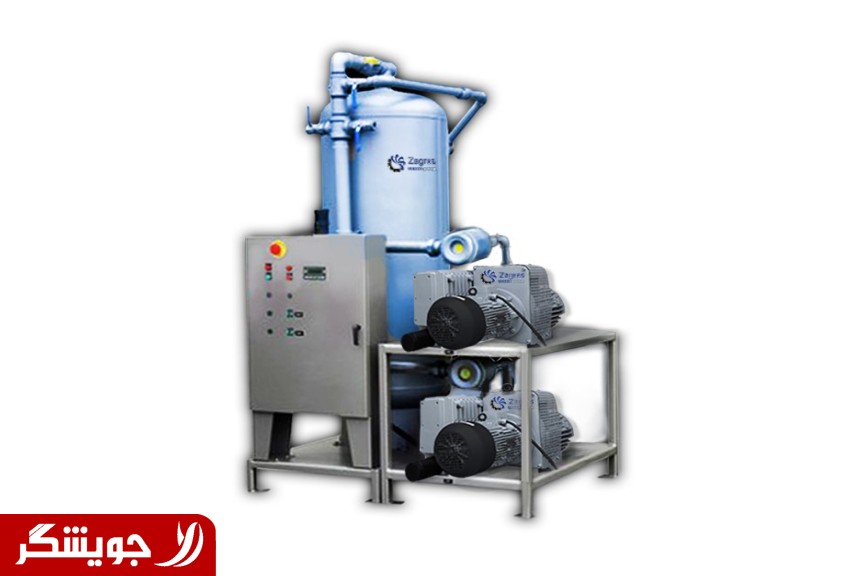

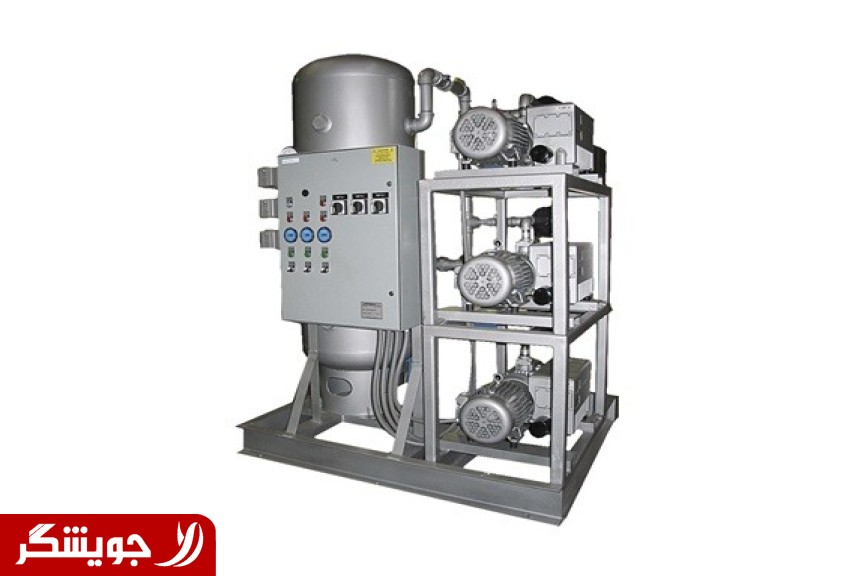

Design and production of central vacuum systems with different tank volumes with one or two pumps or three Zagros vacuum pumps with different discharges of 160, 320, 400, 460 and 600 cubic meters per The watch with a final negative pressure of 0.5 millibars with an absolute pressure gauge is designed and produced according to the needs and applications of the central vacuum. Design and manufacture according to your usage.

Consultation: Central vacuum system with vertical rotary vacuum pump These systems use rotary vane vacuum pumps, this pump They are usually lubricated rotary vane vacuum pumps, which are single-stage pumps with integrated oil cycle and closed-loop systems, while these systems can also use oilless or dry vane rotary vacuum pumps.

It has an efficient yet compact structure, so it takes up little space and leaves little footprint.

Oil vacuum pump due to psychoanalysis Ray with oil guarantees continuous operation for about 50,000 hours.

Oil vacuum pump blades Rotating rotary oil vacuum pumps are connected directly to the vacuum pump cylinder and during operation It is lubricated with oil and the oil is cooled by air and radiators. At the outlet of these pumps, the oil mixed with air by multi-layer and multi-stage separator filters with high efficiency removes 99.9% of oil vapor.

The oil vacuum pump is equipped with a blast gas valve. The role of the blast gas valve is to prevent water vapor from condensing in the rotary vane oil vacuum pump, which can be emulsified by combining with the lubricating oil of the vacuum pump and causing Vacuum pump failure.

If the central vacuum system does not reach the final vacuum with the oil vacuum pump, it may be due to contamination of the oil with process vapors or water. To clean the pump and emulsified oil, the inlet valve Close the vacuum pump completely and let it operate for 30 minutes by hand command to remove any condensate from the oil. If after 30 minutes the pump still does not reach the final vacuum, the pump Stop and turn off and change the oil. For proper use and efficiency of the vacuum pump and central vacuum system, use the appropriate vacuum oil.

Simplex units or vacuum systems that consist of a number of vacuum pumps They are started through the control panel, manual motor starter or other devices provided by the operator and some of them are controlled by vacuum switches.

Multiplex units Multiplex units Plex (Vacuum systems that operate with two or more vacuum pumps and start using one control panel) Multiplex systems that use the control panel on the control panel (manual, off, automatic) to control the system The operation of the system can be changed using the supplied PLC switch. And central vacuum systems provide the vacuum needed by factories, hospitals, laboratories, and other manufacturing facilities that can be located away from the workplace or production, resulting in noise. And keep heat at work or production away and reduce,

Also the maximum vacuum flow required by centers, factories and hospitals is provided so that if all units and units At the same time, use the vacuum created by these systems to meet the maximum discharge required in the flow. Customized vacuum systems are designed and manufactured. The centralized vacuum system provides more security when working with the facility because in the absence of a pump electrical source, they maintain vacuum storage. The vacuum switches provided in this system make it possible to: Predetermined vacuum level by automatically starting the vacuum pumps of these systems and turning them off after reaching the predetermined vacuum level constantly adjusts the required vacuum level and reduces energy consumption.

According to the need and type of application, as well as the required flow, central vacuum systems can be designed and manufactured in Zagros vacuum pump.

Order construction and purchase of vertical central vacuum systems with different uses. Contact us.
