Server Room Control and Monitoring System

Server Room Control and Monitoring System

The structure of such a system is made up of control elements and instrumentation, and the parameters are all physical, so choose a system with reasonable capabilities that can handle all the parameters in Monitor the server room is very important in such circumstances, the choice of equipment manufacturer and even the company's articles of association has become more important because of the development of server systems in Iran, many companies seeing the available space without sufficient expertise in this The field has entered this field and due to the lack of information of managers in the field of industrial automation systems, unfortunately, the right choice was not made for the contractor and eventually equipment was installed in the server room that did not have the necessary efficiency at all and can not be trusted

Due to this issue, Pishran Shatat Vira Company, while having expertise in this field and many changes and revisions that it has made in the server room control system, has achieved a reliable system based on plc hardware, which in every way Compare with what is called a model It has ten server rooms

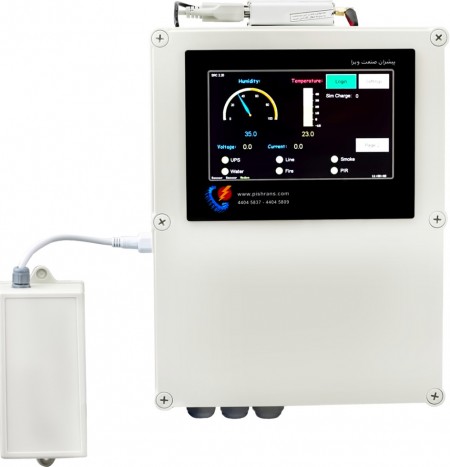

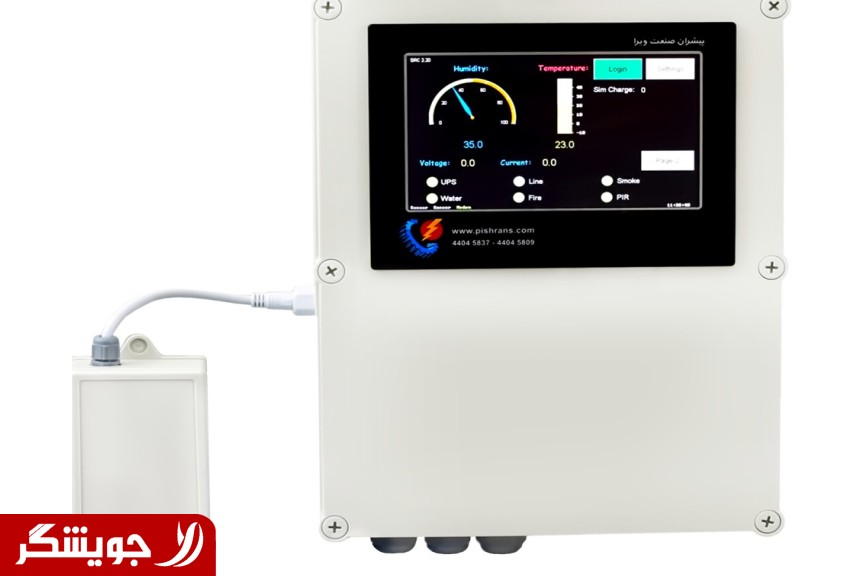

The following are the specifications and capabilities of this system. SRC2.2 server room monitoring system is able to

1. As soon as the temperature or humidity rises, notify the manager or officials via SMS or Miss Call.

2. As soon as the temperature rises out of the danger range, a special process to control the temperature or the server Turn off to prevent burning.

3. As soon as the temperature exceeds the allowable range, turn on the siren or hazard lights.

4. Ability to receive instructions from the manager in any situation To have by mobile.

5. Displays the current temperature and humidity.

6. Ability to connect to all available fire, smoke, water leak sensors, unauthorized entry, shock, mains power outage, outage UPS, input power fluctuation, decrease or increase of allowable voltage level, interruption of one or two phases in three-phase systems, interruption of the server room monitoring device itself.

7. Ability to monitor the temperature Inside the server racks and the condition of the server room environment with mobile.

8. All alarms such as increase in temperature and humidity - the presence of smoke - the presence and leakage of water - shutdown of air conditioners - problems with the compressor or Condenser notifies the air conditioners such as gas leakage and lack of cooling, unauthorized entry, fluctuations and sharp decrease and increase of electricity on the mobile phone.

9. It has the ability to control the air conditioners automatically or the server room ventilation automation.

10. In case of power outage, sends a message to users via SMS.

11. In case of two-phase network, sends a message.

12. Intelligently manages the cooling system to reduce load and reduce depreciation.

13. Has the ability to record temperature and humidity information for up to 10 years and curve Draws temperature and humidity changes.

14. It can be connected to the ethernet port and commanded and the system can be controlled.

15. Ability The air conditioners will be moved within a certain period of time for equal depreciation of the air conditioners.

16. The ability to turn on the backup air conditioners in case of failure of any of the air conditioners in it is provided. .

17. It will be able to turn on the air conditioners in case of power outage and reconnect the power. Service and maintenance should be reduced.

18. Utilizes the presence of the most different protection sensors in the room environment to increase the degree of system security.

19. Ability to define alarms for each sensor It is provided separately.

20. Ability to receive the temperature of various sensors on the mobile phone is one of its features.

21. Ability to send alerts to the guard by audio and video with It has a separate display.

22. Audio and light alarm in case of any error in the server room.

23. Information about the time of power outage and reconnection.

24. Ability to control and monitor all parameters of analog sensors.

25. Manual and automation of air conditioners is provided in it, during maintenance, simply without the need for any changes This can be achieved.

26. Display the complete status of the system on the industrial panel (hmi)

27. Display temperatures and humidity on the industrial panel (hmi)

28. Ability to capture the current status of alerts with mobile

29. Ability to capture the current temperature and humidity with mobile

30. Ability ,, WEB BASE-WIN BASE, IP BASE

31. Ability of parallel controller system

32. Ability to add the number of hardware monitors

33. Ability to delete hardware monitors

34. Crisis management capability in emergency situations

35. Network power cut-off system in case of fire

36. Manual and automatic control Split or cooling system

37. Complies with tia942 protocol.

38. Internal communication is designed as a safe mode.

41 ) Has reliable and reliable PLC hardware.

42. Automatic electronic equipment check system Rejection.

43. It is possible to control the system from several points simultaneously in the organizational network.

44. It has a comprehensive management system that can monitor all the server rooms covered by an organization Monitors in a control room.

45. Has the ability to connect a touch screen monitoring screen for guards and surveillance units.

46. Has reliable industrial hardware.

47. Masular hardware and can be done in the shortest possible time if you need repair services.

48. Communication protocol with tcp / ip computer and communication protocol with Modbass temperature sensors

49. It has a computer synchronization mechanism.

50. No error ...
