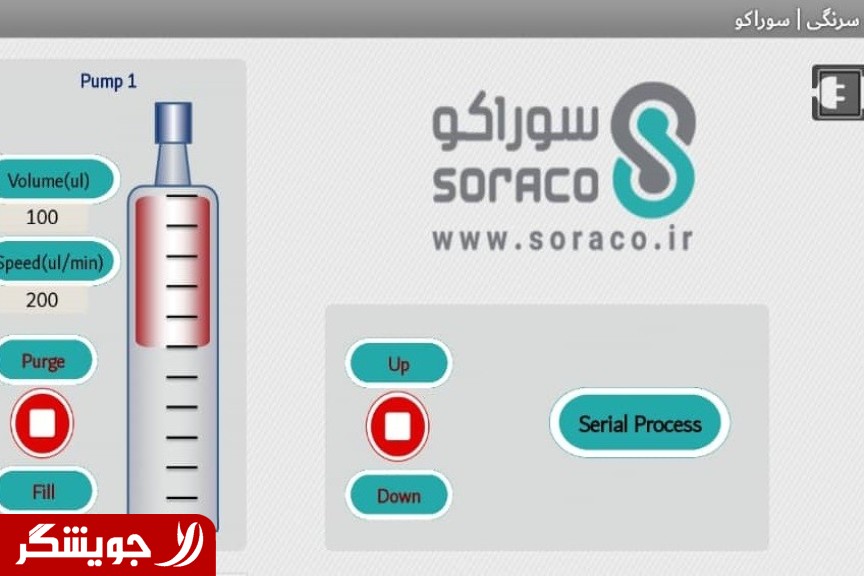

Nano liter syringe pump Android

Nano liter syringe pump Android

Manufacturer of syringe pumps for precise and controlled injection of liquids and chemical solutions These pumps are suitable for microfluidic work; injection in microchips, biotechnology processes, kata list industries, Petroleum industry, and laboratory work ..... used Uses: Precise, controlled and programmable injection of liquids Preparation of emulsions and various colloids Preparation of chemical solutions with Accurate stoichiometric ratio Control of chemical process kinetics by controlling the flow of precursors Continuous and long-term injections (automatic type) Combination or dilution (dual type) 1- Syringe pump Nano Android Uses: Electrospinning Serum pump Micchannels for precise charging of the solution Microfluid and microbiology Preparation of various emulsions and colloids Chemical solutions with precise stoichiometric ratio Control of chemical process kinetics by controlling the flow of precursors Specification of the device Ability to adjust the flow rate from 0.000003 ml / min to 4.1 ml / min (in different syringes) ) Ability to adjust the injection volume with an accuracy of 200 nl in a 1 ml syringe Controllable syringe and use of different syringes Save the latest settings in memory Pump pressure 2 times (water fluid At a temperature of 30 ° C) Screen to show various parameters before and during injection Automatic motor speed adjustment Power system: 220V 1A 50Hz Maximum power Consumption: 50 watts Type of syringe diameter inside the cylinder (mm) Minimum flow (mL / min) Maximum flow (mL / min) 1mL 4.6 0.000003 0.036 3mL 8.9 0.0001 1.34 5mL 12.0 0.0002 2.68 10mL 15.4 0.0003 4.1

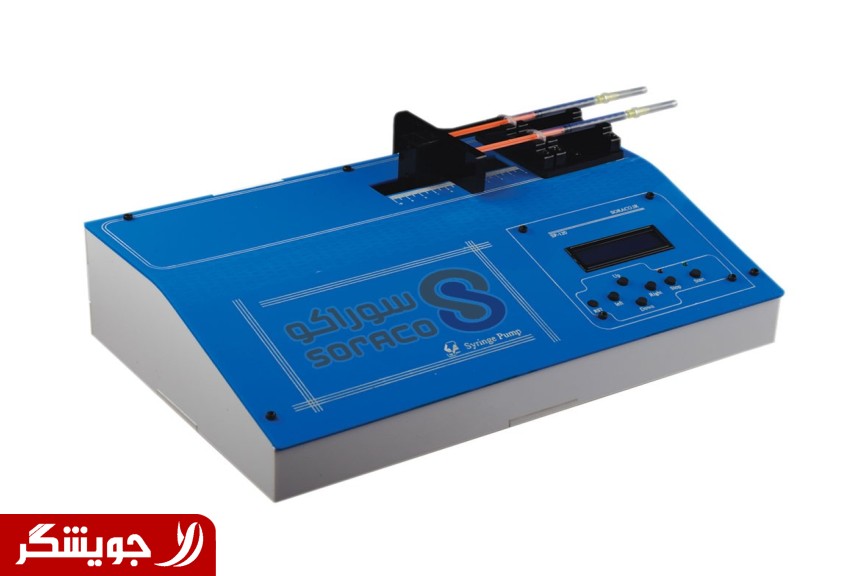

2- Simple syringe pump SP100

• Ability to adjust the flow rate (pump speed) from 0.02 to 14 ml / min (in syringe) Different)
• Adjusting the injection volume from 0.1 ml to 20 ml
• Ability to easily change the syringe and use different syringes
• Automatic adjustment of engine speed

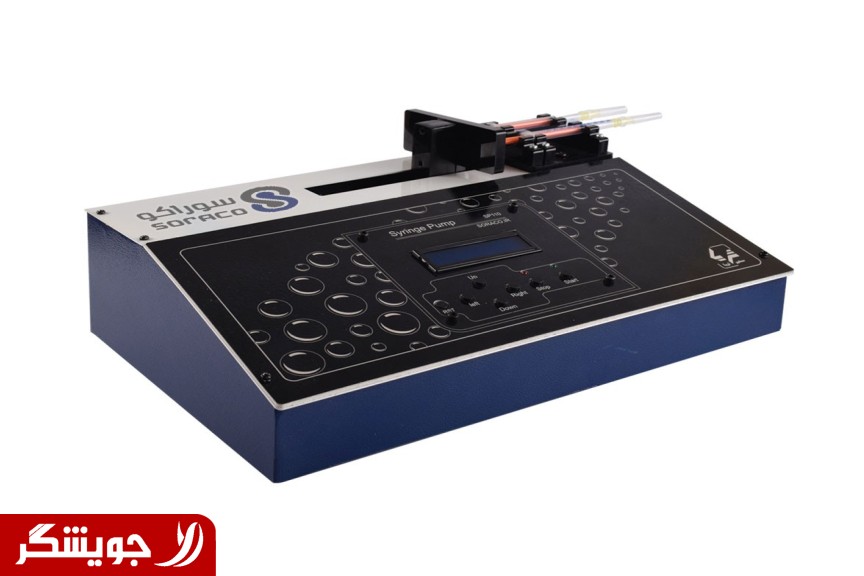

3- Precision syringe pump SP110

• Ability to adjust the flow rate (pump speed) from 0.002 ml / min to 140 ml / min (in different syringes)
• Adjusting the injection volume from 0.01 ml to 60 ml
• Display to show different parameters before and during injection
• Ability to easily change the syringe And use different syringes
• Possibility to use two syringes at the same time with different volumes
• Save the latest settings in memory
• Pump pressure 2 times (water fluid at 30 ° C)

4- Automatic syringe pump (dispenser) SP111

• Similar to precision syringe pump plus:
• With solenoid valve for automatic filling of syringe
• Possibility of continuous and long injection Duration

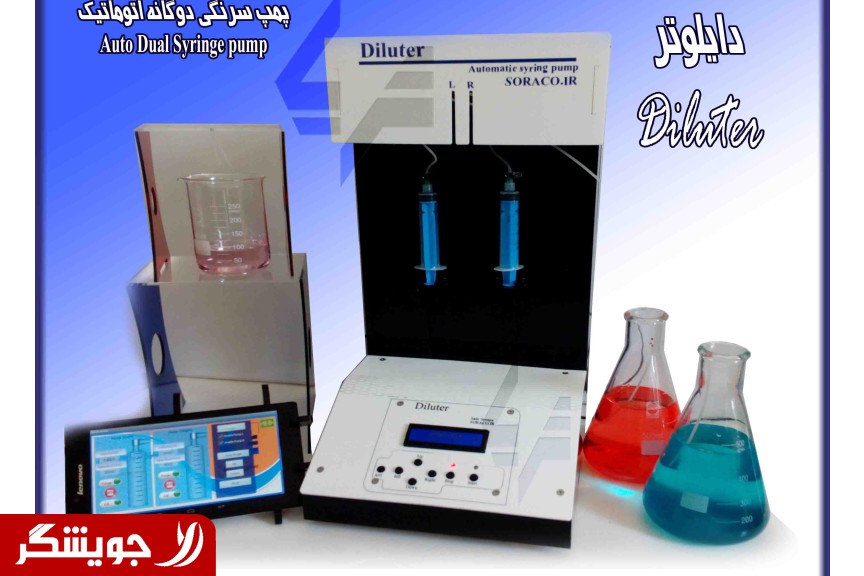

5- Dual automatic syringe pump (Dilloter) SP211

• Similar to automatic syringe pump (dispenser) Plus:
• Two independent automatic pumps and programmable independently with solenoid valve

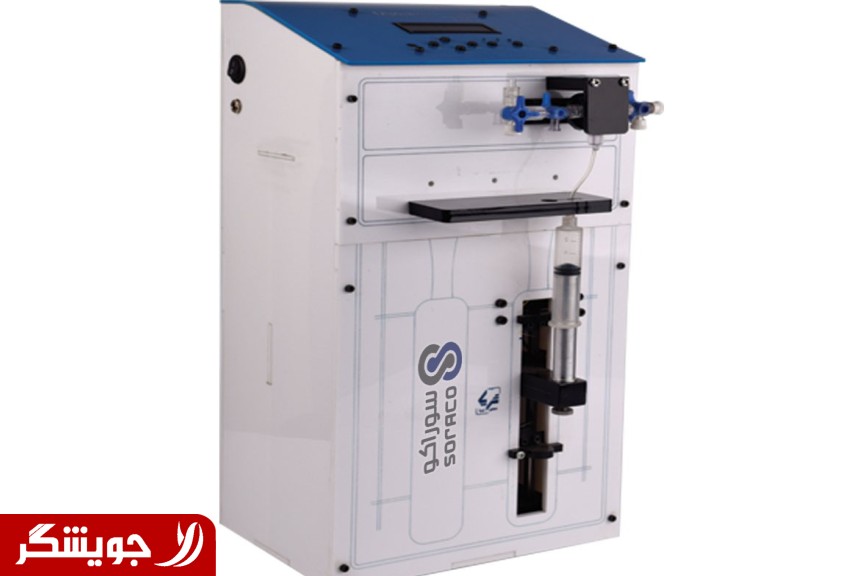

• Can be used as diluent (fluidizer) and fluid mixer 6- Semi-industrial syringe pump Specifications Adjusting the flow rate from 400 μl / min (30ml / hr) to 300 mL Liters per minute (18lit / hr) Capable of injection volume with an accuracy of 200 microliters Pump pressure 2 times (water fluid at ambient temperature) Dimensions of the device 16 * 21 * 52 cm Ability to install 60 and 100 ml syringes Synter type of syringe inside the cylinder (mm) Minimum flow (mL / min) Maximum flow (mL / min) 20ml 19.4 0.2 160 60mL 28.2 0.3 250 100mL 36.0 0.5 300
