Tobishi Stabilizer Japan Electric voltage stabilizer is a device that stabilizes voltage fluctuations in the city and sends it to the consumer's electrical equipment. The main causes of failure of electrical equipment are noise, increase or decrease of voltage or sudden disconnection and connection of voltage, which causes a lot of damage to sensitive and main parts of the device, such as motors, compressors, power or electronic circuits. For this purpose, in order to protect household electrical equipment, industrial, medical, telecommunications, military, etc., the stabilizer should be used. Tehran ElectroGaster It should also be noted that often electrical appliance manufacturers do not take any responsibility for problems caused by power fluctuations in devices without stabilizers. Tehran Electrostructure

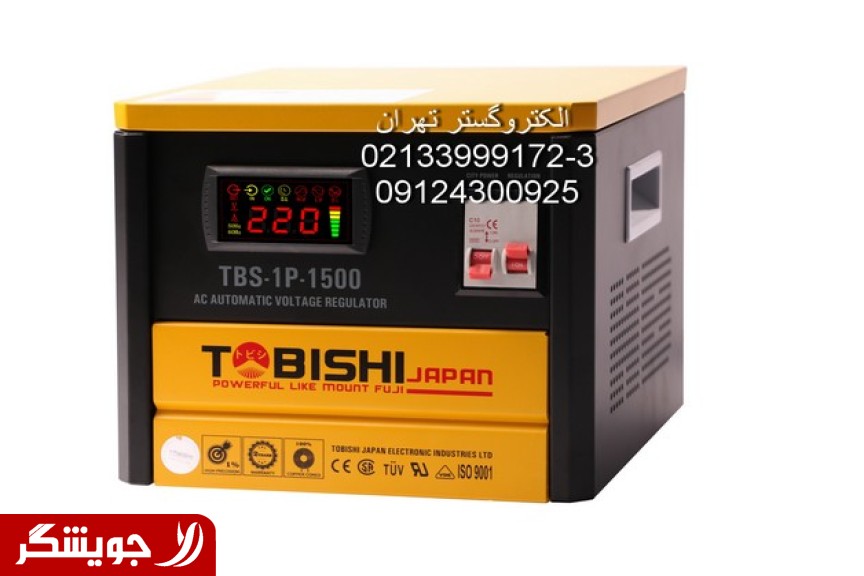

The new structure of the stabilizers, which is used to compensate for voltage fluctuations, uses a transformer whose winding is done on annular cores. Based on the change in the number of turns of the coil on the annular cores, it is slid on the copper core by a charcoal brush connected to the output by means of a servo motor commanded by an intelligent microprocessor, and the output voltage is adjusted by moving it. Tehran Electrostatic Because small voltage fluctuations can compensate for small voltage fluctuations, these stabilizers can stabilize the output voltage at a very high speed and accuracy of 1 volt. TBS-1P -1500 TBS-1P-2000 TBS-1P-3000 Power (kVA) 1.5 2 3 Dimensions (Cm) height x width x length 21x22.5x16.5 26x24x21 31x24x28 Input voltage (V 13(At the bottom of the ad)130-250 Output voltage (V) 220/110 (± 1%) 220/110 (± 1%) 220/110 (± 1%) Maximum current (A) 6 9 13 Instantaneous current (A) Weight (Kg) 8 14 16

TBS-1P-5000 TBS-1P-8000 TBS-1P-10000 Power ( kVA) 5 8 10 Dimensions (Cm) height x width x length 32x36x29 37.5x28x31 37.5x28x31 Input voltage (V) 13(At the bottom of the ad)130-250 Output voltage (V) 220 / 110 (± 1%) 220/110 (± 1%) 220/110 (± 1%) Maximum current (A) 22 36 45 Imstream current (A) Weight (Kg) 27 40 41

TBS-1P-15000 TBS-1P-20000 TBS-1P-30000 Power (kVA) 15 20 30 Dimensions (Cm) height x width x length 45x35x70 45x35x70 55x45x105 Input voltage (V) 13(At the bottom of the ad)130-250 Voltage Output (V) 220/110 (± 1%) 220/110 (± 1%) 220/110 (± 1%) Maximum current (A) 68 90 136 Instantaneous current (A) Weight (Kg) 75 110 165

TBS-3P-9000 TBS-3P-15000 TBS-3P-20000 Power (kVA) 9 15 20 Dimensions (Cm) Height x Width x Length 35.5x33x79 35.5x43.5x79 43.5x51.5x97 Input voltage (V) 277-43(At the bottom of the ad)430 Input voltage (V) 380 380 380 Maximum current (A 3x15 3x22 3x30 Instantaneous current (A) Weight (Kg) 48 85 124

TBS-3P-30000 TBS-3P-45000 TBS-3P-60000 Power (kVA) 30 45 60 Dimensions (Cm) height x width x length 43.5x51.5x97 68x43x102 68x43x102 input voltage (V) 277-43(At the bottom of the ad)430 output voltage (V 380 380 380 Maximum current (A) 45 75 90

Weight (Kg) 131 197 260

• More instantaneous current (Japanese rebuke) The devices can withstand up to more than twice the allowable current instantaneously. 2- Servo motor technology (Tobishi Japan) Servo motor is an intelligent electric motor that uses the steering wheel The data from the microprocessor regulates the corrected output voltage . 3- Optimal energy consumption ++ A of Tehran Electrogester The first stabilizer that has succeeded in obtaining the certificate of ++ A rating from the Institute of Standards and Industrial Research, which shows the lowest energy consumption and the highest efficiency. 4- One year warranty and 10 years after-sales service (Tobishi Japan) Due to the very high quality of the device parts, to reassure the customer, the mentioned devices are provided with one year warranty and ten years after-sales service. Tehran Electrogester

5- Microprocessor operating system (Tobishi Japan) Microprocessor intelligently gives input to the servo motor with full feedback by changing the input voltage RMS and sampling the output voltage and thus The output form produces 100% sinusoidal and fixed. 6- All-copper core (Japanese Tobishi) Using a core made entirely of copper results in maximum conductivity and minimum internal resistance, followed by high efficiency. It makes the device weigh more than similar models. 7- Very high accuracy (1% error) (Japanese Tobishi) According to the intelligent seromotor and microprocessor system, unlike relay-trans relay models with error Over 13 volts, the error of Tobishi stabilizers is a maximum of 1%. 8- High performance speed (Tubishi Japan) Quality components used in the intelligent system of this device cause very high speed regulation performance in less than 5 Milliseconds. 9- Lightning protection (Tobishi Japan) According to the voltage of several thousand volts of lightning, which causes damage to all electrical equipment in a few tens of microseconds, Tobishi lightning protection circuit stabilizers with new technology and It has high accuracy and speed. Tehran Electrogaster 10- Has a ByPass switch (Japanese Tobishi) Usage the ByPass switch to take the device out of circuit and use the consumer equipment directly from the city electricity. 11- Has two cores integrated with two separate coals (Japanese Tobishi) 12- Smart fan (Japanese Tobishi) 13- Unauthorized input voltage warning system (Japanese Tobishi) 14- Output 380, 220 and 110 volts completely sinusoidal (Japanese rebate) 15- Overload audio and video warning system (Japanese rebuke) 16- Filter to remove noise and electric shock (Japanese rebuke) Electrogaster Tehran 17- Quality Certificate (Tobishi Z ...
