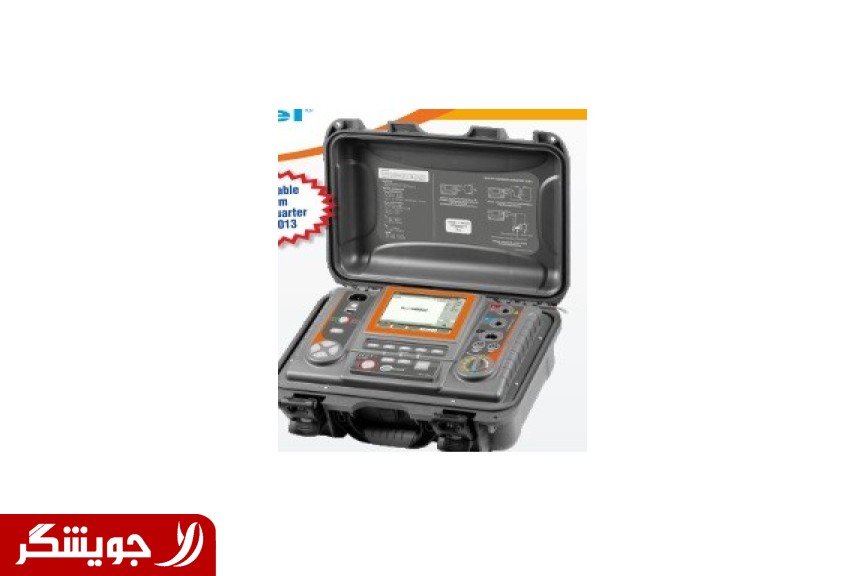

Test device insulation MIC-5050

Test machine, dielectric, MIC-5050, voltage, 1000V with voltage change with a step of 10 V Range testing insulation up to 40 Tera-Ohm - test method, two-and three-wires - possibility of testing, dielectric cables, multi-filament - equipped to filter noise - drain automatic electrical loads after performing test - test continuity and connective in the earthed supply - measure leakage current and capacitance and voltage, AC , DC, -, draw the graph Test machine, insulation 5000 V, ملحقات standard

Test voltages 100V,250 V ,500V,1000 V,2500V,5000 V

Or voltages between 50V to 1000 V with a step of 10 V, and voltages between 1000V to 5000 V with a step of 25 V

-Measurement of insulation resistance tester, etc. Ab1(R2/R1) or Ab2(R3/R2), in time interval T1,T2 ,T3,

The range of dielectric tests to IEC 61557 – 2 : 15 TΩ

DAR(Dielectric Absorption Ratio) -perform testing : PI(Polarization Index)

SV(Step Voltage insulation test)

DD( Dielectric Discharge calculation)

Test comparison of two-and three-wire and the ability to use the wire test up to 20 km
Measure AC voltage, DC -990 memory and the ability to connect to the computer

Test machine, insulation 5000 V, ملحقات standard

With voltages 100V,250 V ,500V,1000 V,2500V,5000 V

Or voltages between 50V to 1000 V with a step of 10 V, and voltages between 1000V to 5000 V with a step of 25 V

-Measurement of insulation resistance tester, etc. Ab1(R2/R1) or Ab2(R3/R2), in time interval T1,T2 ,T3,

The range of dielectric tests to IEC 61557 – 2 : 20 TΩ

DAR(Dielectric Absorption Ratio) -perform testing : PI(Polarization Index)

SV(Step Voltage insulation test)

DD( Dielectric Discharge calculation)

Damage Location(Burning Function)

Temperature measurement
Test continuity and connective in the earth, feeding and measuring leakage current and capacitance during the test
Test comparison of two-and three-wire and the ability to use the wire test up to 20 km
Measure AC voltage, DC

-990 memory and the ability to connect to the computer
