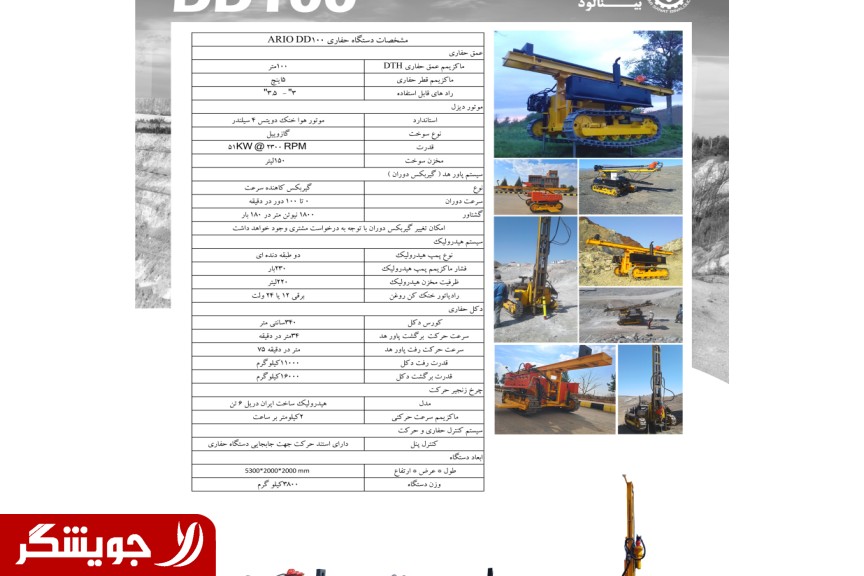

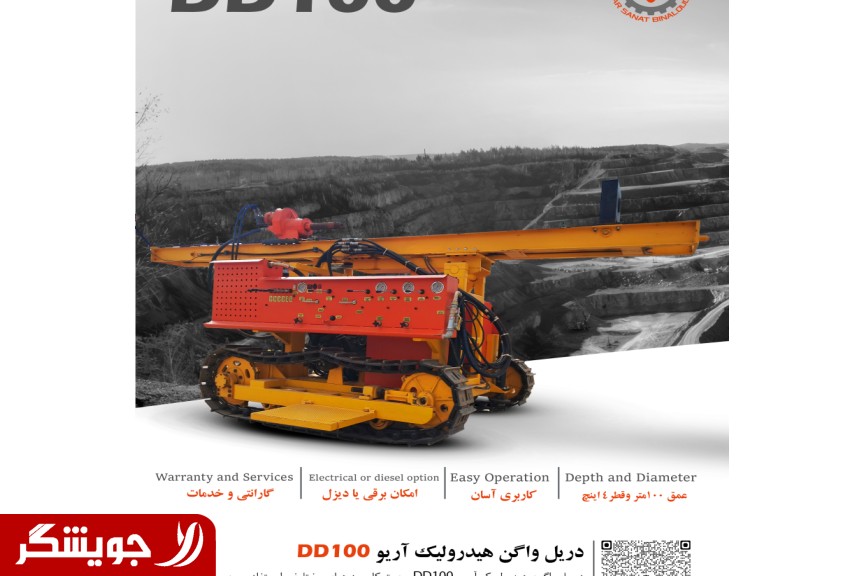

Areo DD100 hydraulic wagon drilling machine

Areo DD100 hydraulic wagon drilling machine

Areo Wagon Drill designed by Hafar Sanat Binaloud Engineering Company is one of the types of drilling machines which includes the rig and chassis and the hydraulic system as well as the Duran rod rotation agent which is known as Powerhead or Duran gearbox. It should be mentioned that all the components and parts of this device are completely new and produced in Iran for the first time and presented to the respected customers, and it has been registered as a patent in the intellectual property organization.

Areo hydraulic wagon drill machine is used and operated for various applications, the main use of this machine is designed to perform exploratory operations and it is famous for powder drilling, the drilling depth of Areo is 100 meters and the diameter is 100 mm or 10 cm, which is in the materials Different will have the possibility of drilling.

The use of a dust collector or dust collector can bring samples from the borehole to the desired location and be collected by the operator, and when the dust collector or collection cyclone is not installed next to the device, the operator can practically collect the drilling particles. cutting) in the opening of the borehole, it will be possible to record and store samples coming out of the hole.

Areo hydraulic machine is used for drilling boreholes in mines, road construction, tunneling, geothermal, dam construction, etc. Due to the lack of need to stabilize the device on the ground due to its relatively high weight, a significant saving in the execution of drilling services is obtained. Areo series is offered in different models, which will be electric hydraulic and electric diesel. During the drilling operation, the Areo Wagon Drill Machine is connected to the compressed air compressor, which is responsible for removing the drilling particles and also the impact factor in the DTH hammer inside the hole.

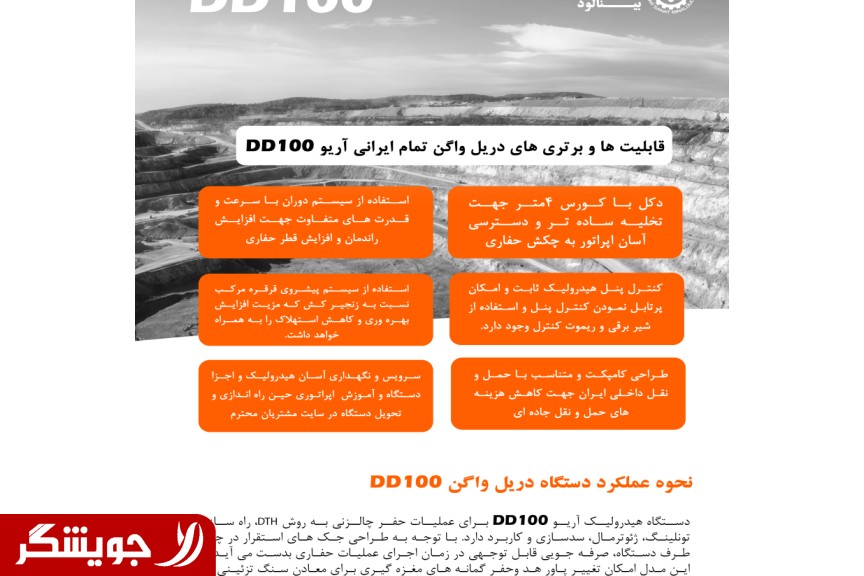

The ability and superiority of the all-Iranian Ario drill wagon machine

** The ability to use completely Iranian chain wheels for the first time and provide all quality control tests for it in different mining areas

The heart of the Davits 912 diesel engine is an air conditioner, which can be serviced and maintained in all conditions of the country.

Using the rotation factor according to the need of ID40, ID400 and ID100 gearboxes according to the torque and rotation required during drilling operations.

Using the compound pulley advance system to reduce depreciation and increase the efficiency and penetration rate of drilling mud

Using a 12 or 24 volt electric oil cooler to reduce the system's hydraulic oil temperature to increase efficiency.

**Compact and compact design of the device according to the arrangement of components for ease of transportation as well as easy service and maintenance.
