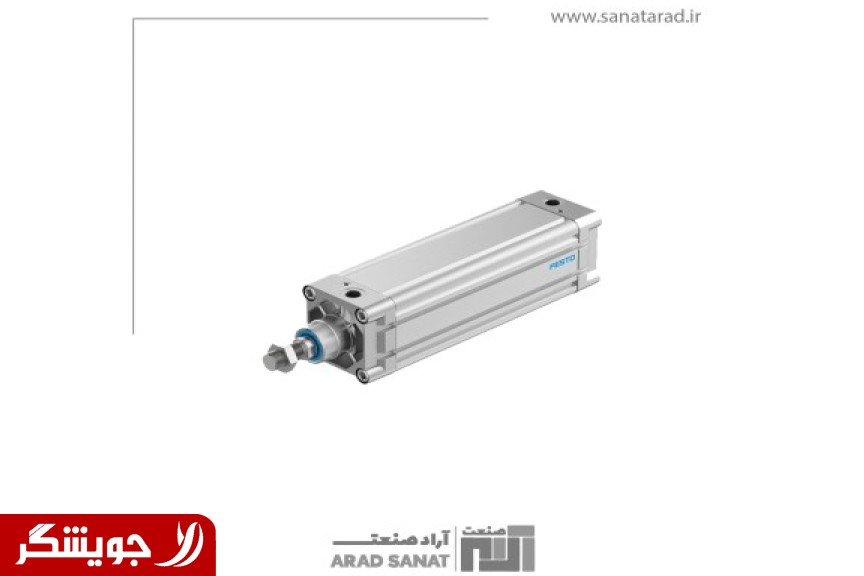

Pneumatic jack (pneumatic cylinder) is a well-known DNC hidden shaft square profile, due to its profile, it has high strength and impact resistance. This type is double-sided or double-sided and has an adjustable bumper. The magnet on the piston of this type of cylinder is one of its advantages. The DNC jack is designed based on ISO 15552 manufacturing standard.
According to the customer's choice, this jack can be ordered in two types of brakes, where the letter P stands for fixed brake and PPV adjustable brake. Also, this cylinder is produced with the ability to install a sensor, the new generation sensor of Festo with codes SMT-8M and SME-8M is suitable for this jack and the working pressure is from 1 to 10 bar. Pneumatic jack with DNC model can be ordered in diameters from 32 to 125 mm and movement stroke from 10 to 2000 mm. The newer generation of DNC cylinders are in the DSBC model, which can be supplied at a more reasonable price. Festo's DNC model pneumatic jack can be ordered with special functions: The letter S2 means that the jack has two characteristics, the amount of force is the same on both sides.
The letter S6 refers to the sealing material or internal accessories of the jack, which is resistant to heat up to 120 degrees Celsius.
The letter S10 means continuous movement at a slow speed, suitable for activities with slow and steady movement without excessive slippage.
The letter S11 means low friction, the jack has special internal equipment that reduces wear in the system.
This feature allows the jack to work at low pressures.
The letter S20 means having two shafts and that the inside of your shaft is empty.
The letter K2 means the length of the male thread is longer than the standard.
The letter K3 means the thread of the female thread.
The letter K5 means that the thread is special.
The letter K7 means that the thread of the shaft head is hexagonal.
The letter K8 means that the shaft rod is longer than the standard.
The letter K10 refers to the material of the shaft, which is an aluminum alloy with soft anodization, which is suitable for welding environments, for example.
The letter KP means a fastener called a clamp that is closed around the shaft.
