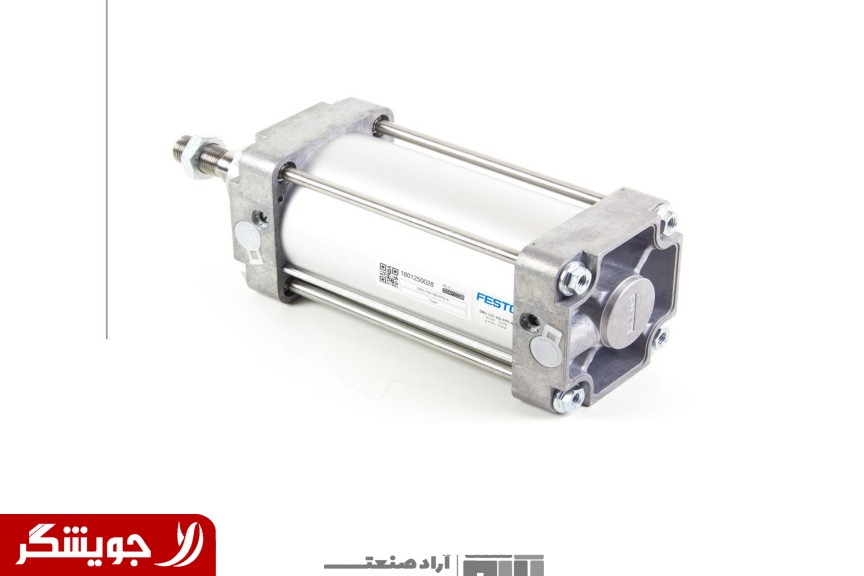

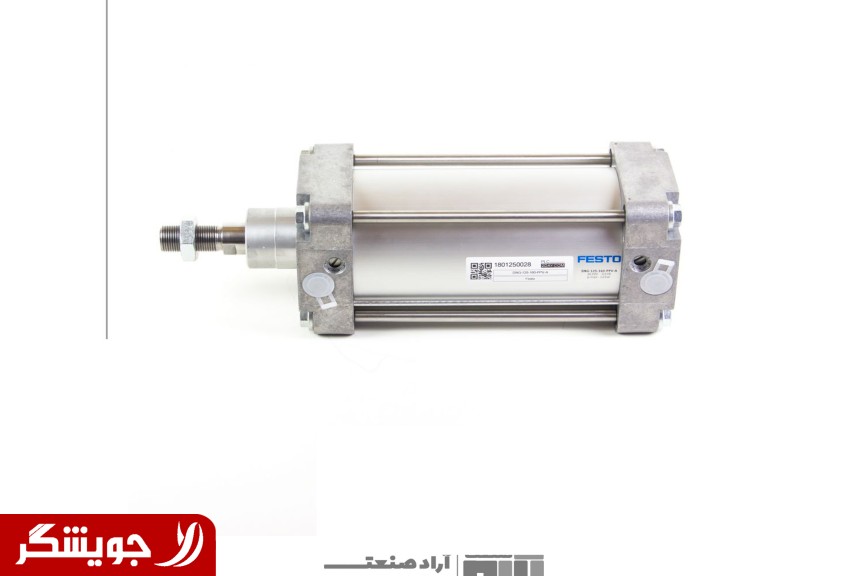

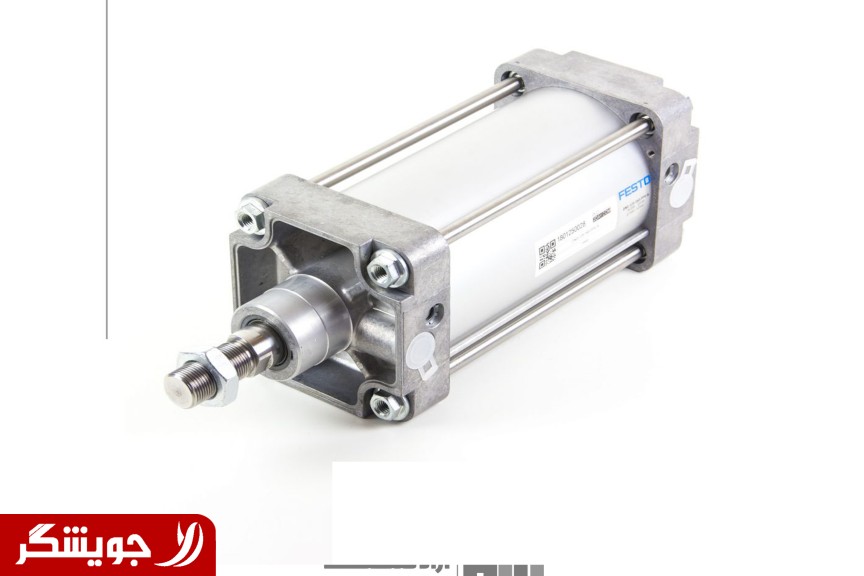

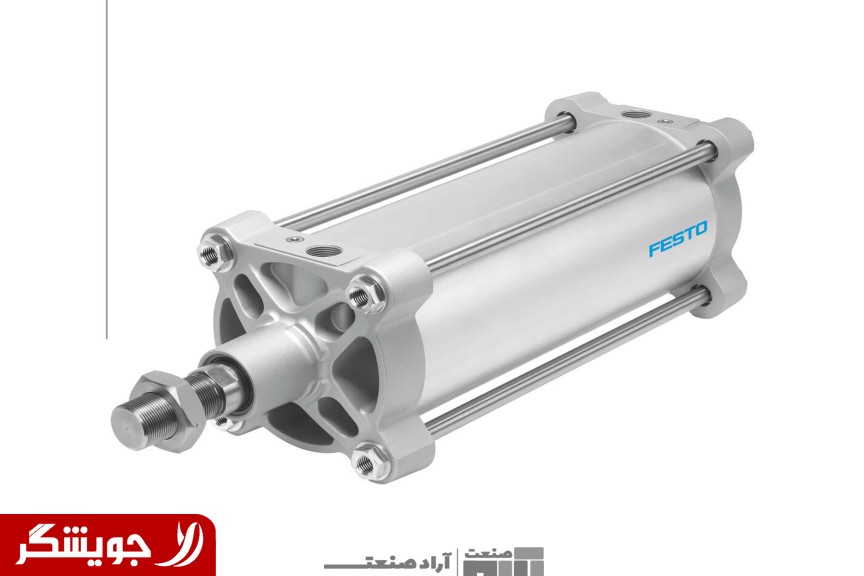

Festo four-mile pneumatic cylinder, Festo DSBG pneumatic jack is the new generation of Festo European standard jacks.
The older generation of Festo four-shaft jacks was produced with the DNG model.
Festo DSBG cylinder is made according to standard from 32 mm diameter to 320 mm diameter.
Due to the support of the jack by four auxiliary rods, these types of cylinders have the ability to withstand the pressure of 12 bar compressed air as well as the high stresses of the force behind the piston in high diameters.
For this purpose, this type of Festo pneumatic jack is produced in high diameters.
The pneumatic jack model is DSBG as mentioned. The diameter of the cylinder and the jack course are specified after the name of the cylinder model and there is a space between them.
After that, the orderer specifies the type of brake cylinder. If the brake is fixed, we choose the letter P, and if it is adjustable, we choose PPV.
The letter A at the end of the product code means that the magnet is embedded inside the cylinder piston.
The mentioned items are for DSBG pneumatic cylinders in its standard model. According to the customer's needs, these types of cylinders are assembled in Festo and can be supplied, and if necessary, the DNG model can also be assembled. DNG-32-70-PPV-A DNG-32-80-PPV-A DNG-32-125-PPV-A DNG-32-160-PPV-A DNG-50-200-PPV-A DNG-160-160-PPV-A 1634781 DSBG-32- -PPVA-N3 483 N 1 ... 2800 mm 1644503 DSBG-40- -PPVA-N3 633 ... 754 N 1 ... 2800 mm 1646708 DSBG-50- -PPVA-N3 1178 N 1 ... 2800 mm 1646739 DSBG-63- -PPVA-N3 1870 N 1 ... 2800 mm 1646770 DSBG-80- -PPVA-N3 3016 N 1 ... 2800 mm 1646800 DSBG-100- -PPVA-N3 4712 N 1 ... 2800 mm 2158455 DSBG-125- -PPVA-N3 7363 N 1 ... 2800 mm 2035926 DSBG-160- -PPVA-N3 12064 N 1 ... 2000 mm 2389803 DSBG-200- -PPVA-N3 18850 N 1 ... 2700 mm 3150987 DSBG-320- -PPVA-N3 48255 N 1 ... 2250 mm
