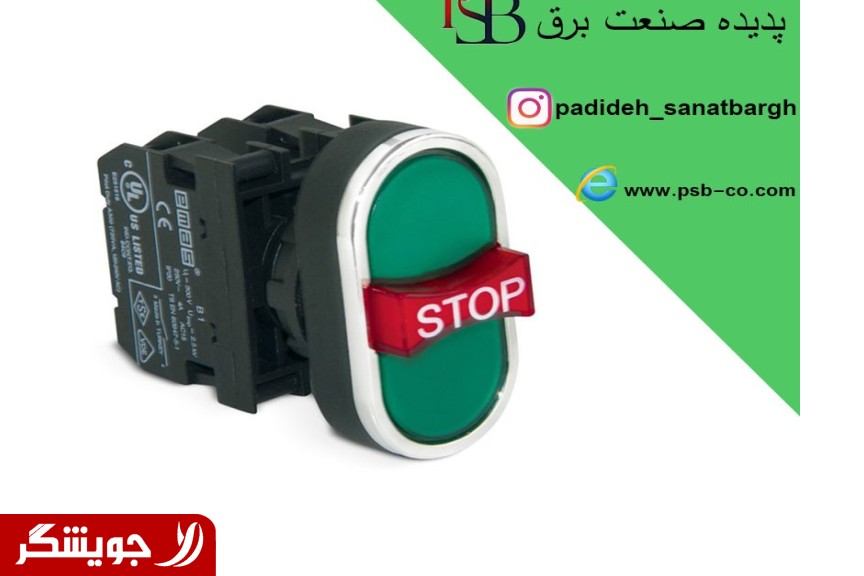

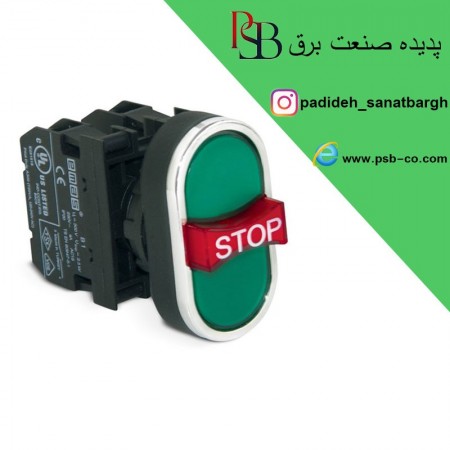

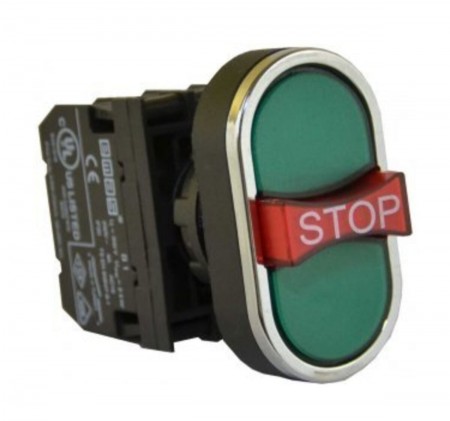

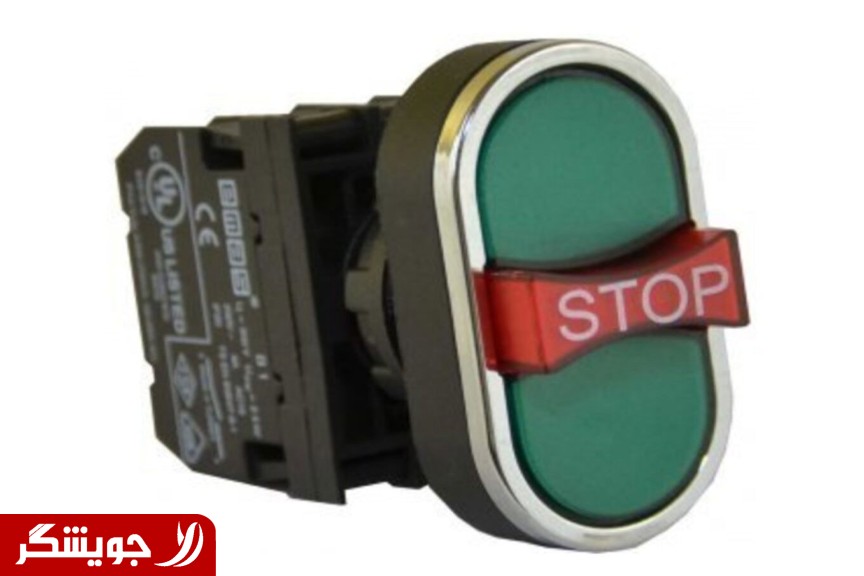

Triple Button Push with Extra Stop

Triple Button Push with Extra Stop

Triple Button Push with Extra Stop Without Lights B121B30YY

Types of Double Back Chassis Double Double Chassis with Lights Simple Double Chassis Chassis- Double trap design Different colors of pushbuttons: The chassis of the starters is made in different colors, each of which represents a specific task. Each of these colors makes the operator when Do not have trouble working with these switches.

And each color is for a specific purpose and task: Red color: for power outages Fungal red color: for emergencies for fast power outages Green or black: To start the system Yellow: to start the system in a special case White or blue: This color can be used for any purpose in the system A number of start chassis The red ones have larger-than-usual heads, which are referred to in the industry as mushroom chassis, which are used as emergency chassis in the system.

• High currents passing through wires in industrial environments
• Easier to use than switch
• Using colors Mixed (to separate the function of the device)
• Small dimensions
• Very convenient operation
• Different types (key replacement)

Consider the following in choosing a Push Button is very effective:

• Type of Push Button (step, start, fungal)
• Type and number of contacts Push Button
• Tolerable flow of contacts
• Number of times Permissible disconnection and connection
• Paint-baton
• Type of operation (for example, instantaneous or permanent)
• Voltage of the lamp if the cap-baton is illuminated For installation on the panel
• Combination of contacts (1 NO + 1NC)
• Ability to change contacts

In circuits with contactors, often for instantaneous start or stop command and also change Circuit mode uses a knob or pushbutton. By applying pressure to the chassis, all contacts change position and return to the first position by removing the pressure applied to the pushbutton. Usually uses red knobs as circuit breakers and black or green knobs as circuit connectors. Push-buttons are produced in three types: metal, plastic and bakelite. ** XB4 series made of metal, XB5 series It is made of plastic and the XB7 series is made of bakelite. **

The types of chassis are: Stop start: The knobs are steering devices that are actuated by the hand and direction of the disconnect and reconnect circuit. And are connected in one knob.
