The price of gate valve class 800 (forged sliding valve + technical specifications)

The price of gate valve class 800 (forged sliding valve + technical specifications)

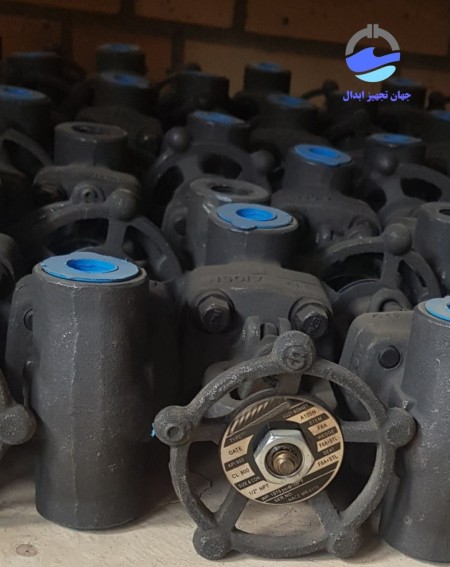

Forge class 800 slide valve in sizes 1/2 - 3/4 - 1 - 1/4 1 - 1/2 1 - 2 inches
With weld butt / NPT connection
Trim: Stellite and 13%CR

Technical specifications:
Body: A105N
SEAT RING: ASTM A276-420
WEDGE: ASTM A182-F6a
STEM: ASTM A276-410
GASKET: S.S 304 Graphite
BONNET: A105N
PACKING: Fiber
BONNET BOLT: Graphite
GLAND BOLT (EYE BOLT): ASTM A193-B7M
GLAND BOLT PIN: S.S 304 (ISO 8740)
GLAND: ASTM A276-410
GLAND FLANGE: A105N
GLAND NUT: ASTM A194-2HM
YOKE SLEEVE: CR
SLEEVE WASHER: AISI 1025
HANDWHEEL: Malleable Iron Malleable Iron
H/W NUT: AISI 1025 Cr. Plated
NAMEPLATE: S.S 304

----------------------------------------------------- ---------------
Learn more:


Gate valves are key components in piping and industrial fluid transfer systems. These valves, with their simple design and effective performance, play an important role in controlling the flow of various fluids, and due to their easy operation, they are widely used in various industries, including oil, gas, petrochemical, and power plants.

800# carbon steel gate valves are an ideal choice for high pressure environments. These valves with a strong structure and high resistance to corrosion and pressure, while ensuring proper flow, also guarantee the security and durability of the system. The design of the resistant body and special discs of these valves allows the flow of fluid to pass directly without additional pressure drop.

According to various industrial needs, #800 class gate valves are designed and produced in various sizes and dimensions. Choosing this high-quality product from a reliable supplier, in addition to increasing system efficiency, also reduces maintenance costs.

Technical specifications of the gate valve

- Type of valve: GATE VALVE
- Material of body and bonnet: ASTM A105 NORMALIZED (carbon steel)
- trim material: Stellite / 13%CR (resistant to wear)
- Type of connection: SOCKET WELD ENDS (socket connection)
- Work class: 800#
- Structure: OS&Y (out of service and movable stem)

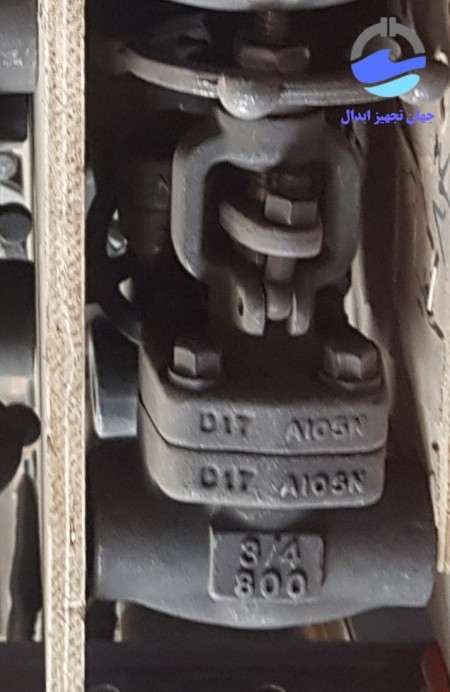

- Size: 3/4 inch
- Design Features: Screw Bonnet, Screw Gland, Rising Stem, Handle Operation
- Special Feature: Suitable for repacking under pressure in the fully open state

The unique features of the gate valve

1. Body and bonnet material: This valve is made of ASTM A105N carbon steel, which has high strength and durability. This material shows good resistance against high pressures and harsh environmental conditions.

2. trim material: Using Stellite and 13% CR in the trim of this valve creates a very high resistance against wear and corrosion. This feature increases the useful life of milk.

3. Type of Connection: Socket Weld connection in this valve provides easy and stronger installation. This type of connection is suitable for high pressure and industrial applications.

4. OS&Y Structure: The out-of-service and movable stem (OS&Y) structure of this valve provides higher safety and reliability. This feature ensures that the internal pressure of the system is maintained when repairs or repacking are required.

5. The possibility of repacking under pressure: This valve allows the possibility of repacking under pressure in the com mode
